50MHz to 1.0GHz, Single Sideband Modulator

Available from Planar Monolithics Industries, Inc.

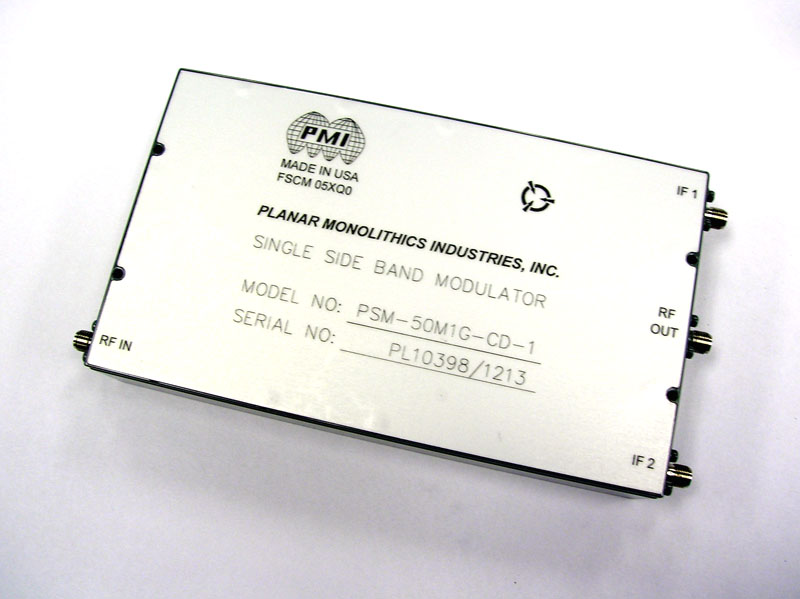

PMI Model PSM-50M1G-CD-1 is a single sideband modulator that operates over the 50MHz to 1.0GHz frequency range. The input P1dB is +5dBm typical and has an IF Modulation Range of DC to 10MHz. The IF Modulation
Power Range is +7dBm minimum and +13dBm maximum into 50 ohms. The conversion loss is 10dB maximum
and this model provides carrier suppression of 20dBc typically. The Quadrature Phase Accuracy is ±10 degrees maximum with a Quadrature Amplitude Accuracy of ±2.0dB maximum. This model is supplied in a package
measuring 6.0"L x 3.5"W x 1.0"H.
