Wireless&RF_TL_7.28.17

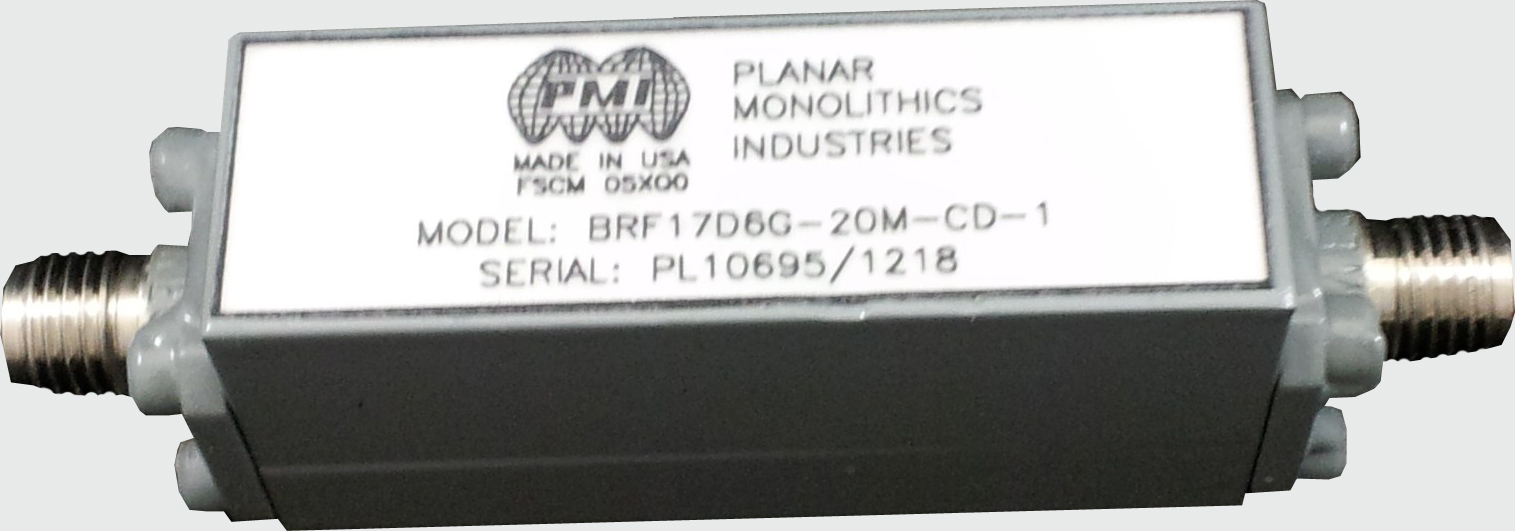

PMI Model No. BRF17D6G-20M-CD-1

Available from Planar Monolithics Industries, Inc.

PMI Model BRF17D6G-20M-CD-1 is a band reject "notch" filter having a passband of DC to 17.47GHz and 17.77 to 20.0GHz and over 40dB of rejection at 17.59 to 17.61GHz. Insertion loss in the passband is less than 5dB and VSWR is better than 2.0:1. This filter is supplied with SMA Female connectors and the size is 1.5" x 0.5" x 0.68".
