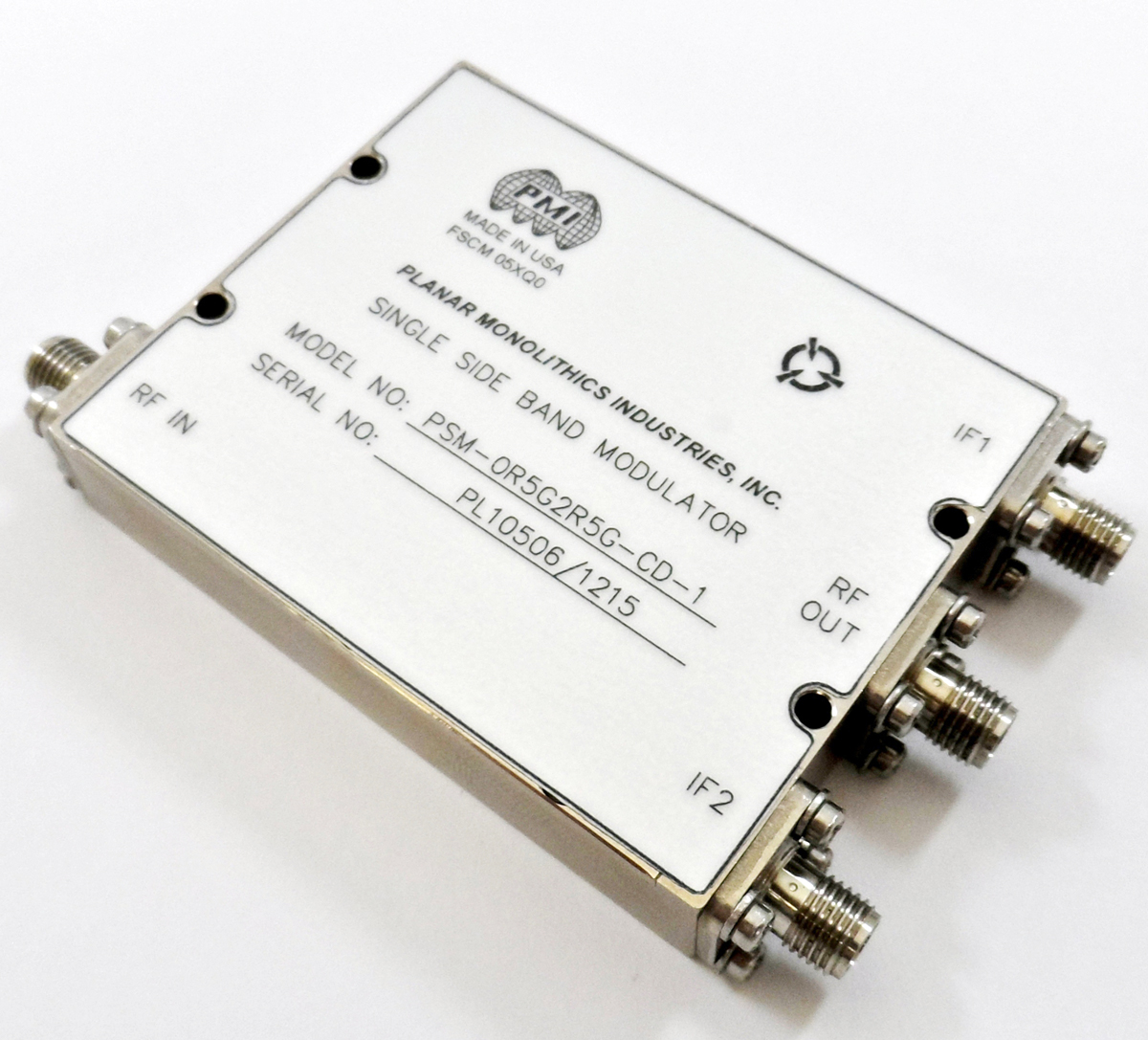

PMI Model No. PSM-0R5G2R5G-CD-1

Available from Planar Monolithics Industries, Inc.

PMI Model PSM-0R5G2R5G-CD-1 is a single sideband modulator that operates over the 500MHz to 2.5GHz frequency range. The input P1dB is +5dBm typical and has an IF Modulation Range of DC to 500MHz. The IF Modulation Power Range is +7dBm minimum and +13dBm maximum into 50 ohms. The conversion loss is 13.5dB maximum and this model provides carrier suppression of 23dBc typically. The Quadrature Phase Accuracy is ±10 degrees maximum with a Quadrature Amplitude Accuracy of ±2.0dB maximum. This model is supplied in a package measuring 2.5"L x 2.0"W x 0.5"H
