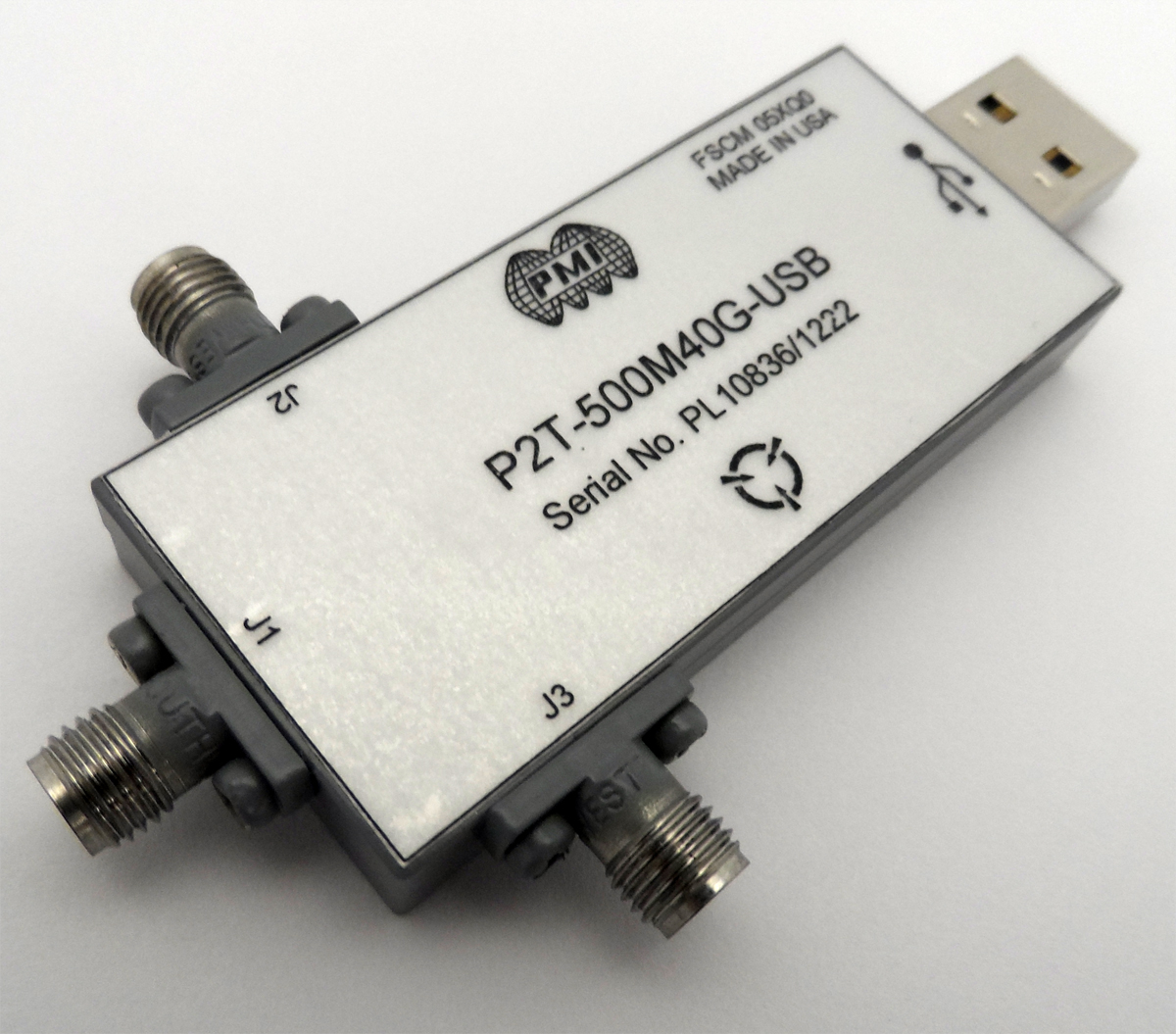

PMI Model No. P2T-500M40G-USB

Available from Planar Monolithics Industries, Inc.

PMI Model No.P2T-500M40G-USB is a state-of-the-art SPDT, Absorptive switch that operates from 500MHz to 40GHz. This switch is powered and controlled via USB 2.0 and is supplied with a Graphic User Interface (GUI) that allows to control of the switch via your PC. This model offers low insertion loss of 6.0dB maximum and a minimum isolation of 60dB. The package size is 2.25" x 1.0" x 0.33".
