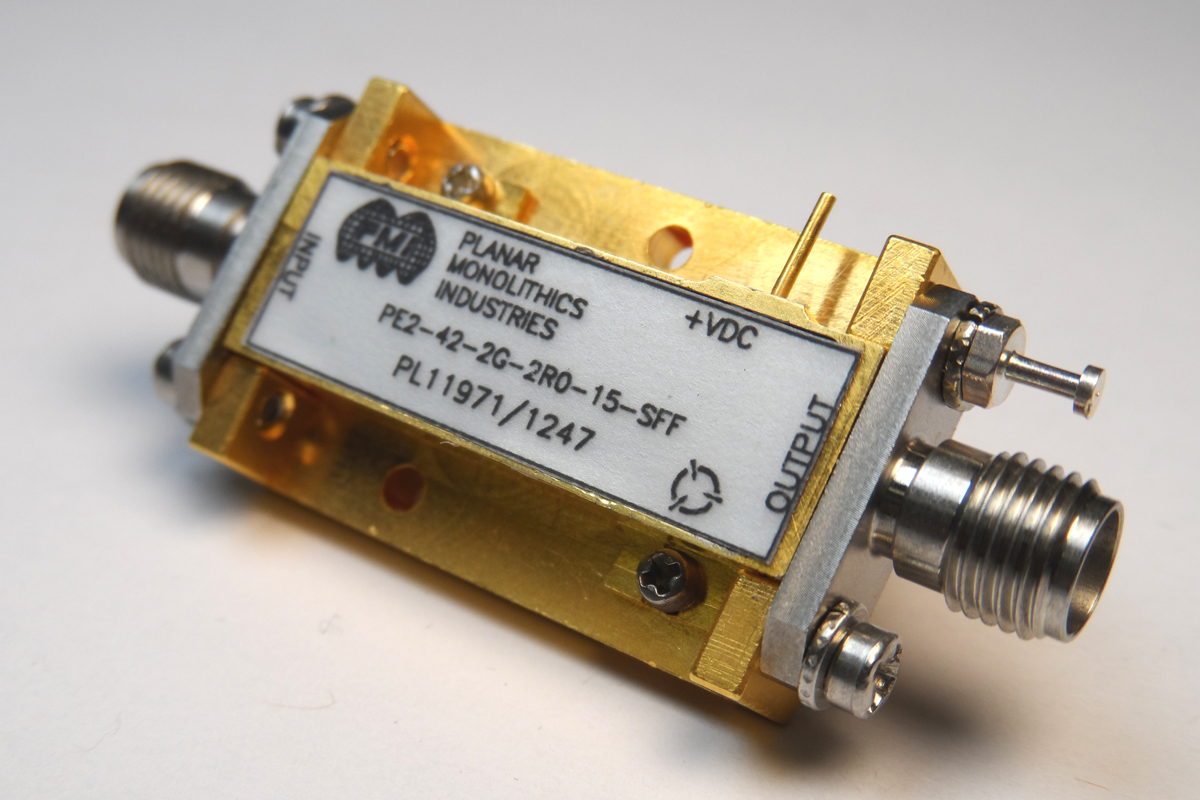

PE2-42-2G-2R0-15-SFF Low-noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PE2-42-2G-2R0-15-SFF is a low-noise amplifier that operates over the frequency range of 1.4 to 2.4GHz. This model provides gain of 42dB minimum with a typical noise figure of 1.8dB. The output power at 1dB gain compression is +22dBm typical and the output IP3 is +30dBm typical. This amplifier is supplied in our standard PE2 housing that can be used with SMA connectors or as surface mount.
