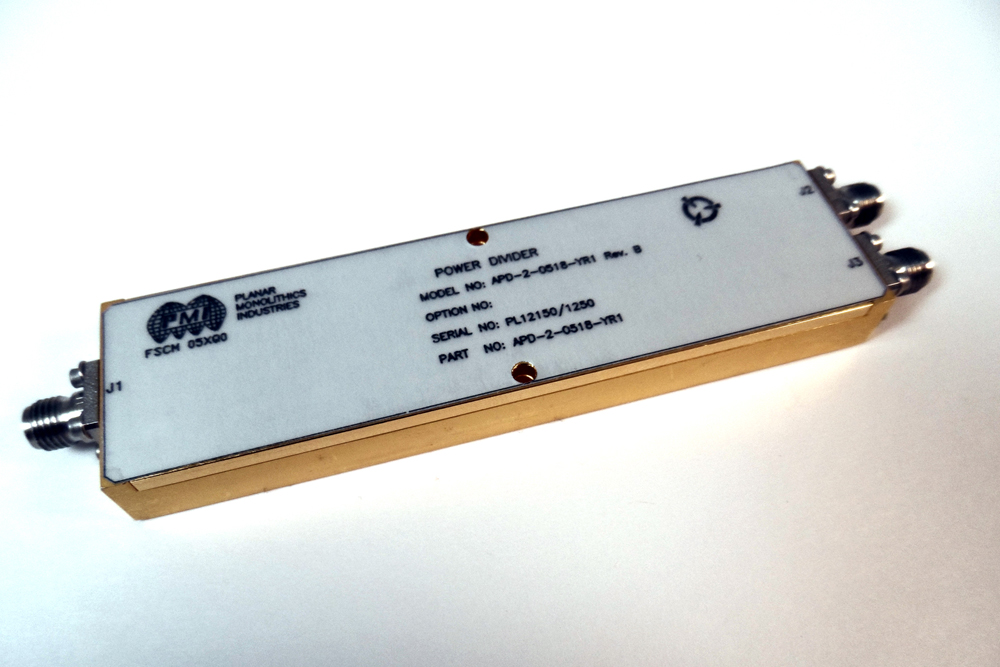

APD-2-0518-YR1 2-Way Power Divider / Combiner

Available from Planar Monolithics Industries, Inc.

Model APD-2-0518-YR1 is a 2-Way Power Divider / Combiner that operates over the frequency range of 500MHz to 18GHz. This model offers low loss of 3.5dB typical (over 3dB theoretical) with a VSWR of 1.5:1 typical into a 50 ohm impedance. The average isolation is 20dB. This model offers a typical amplitude balance of ±0.45dB and a typical phase balance of ±5 degrees. This model can handle input power levels of up to 25 watts into a load VSWR of 1.2:1 and up to 7.5 watts into a load VSWR of 2.0:1. The housing measures 3.75" x 1.0" x 0.4" and is gold plated.
