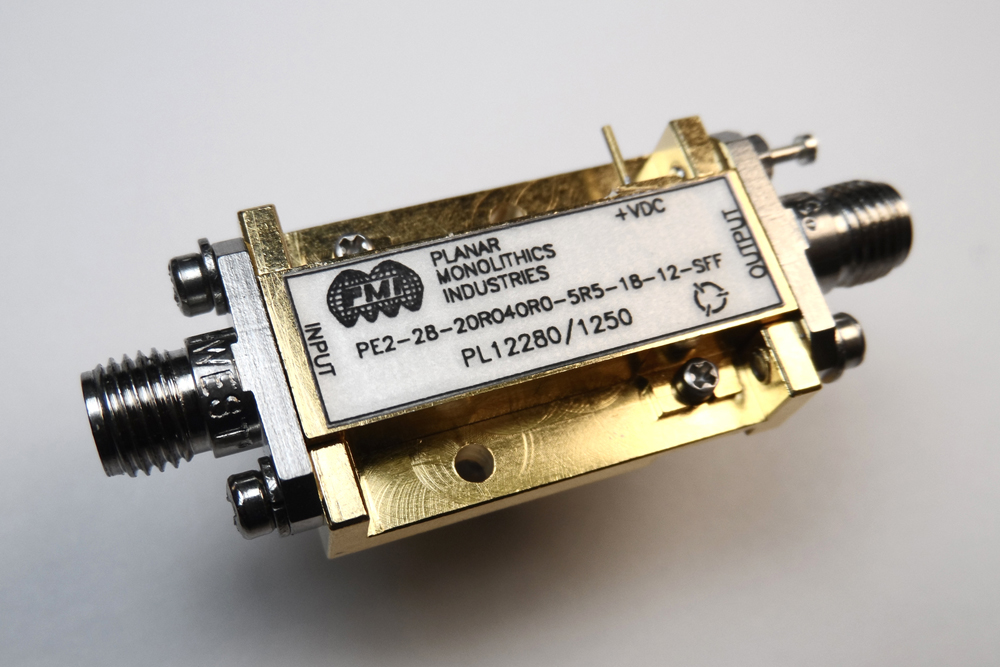

PE2-28-20R040R0-5R5-18-12-SFF Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PE2-28-20R040R0-5R5-18-12-SFF is a 20GHz to 40GHz low noise amplifier that typically provides 28dB of gain. The gain flatness is ±2.5dB maximum and ±1.5dB typical with a noise figure is 5.5dB typical. This amplifier provides a minimum OP1dB of +15dBm minimum. The VSWR is 2.3:1 into 50 ohms impedance and operates on a single DC supply of +12 to +15 volts with 350mA nominal current consumption. This unit is supplied with field removable 2.92mm female connectors and in our standard PE2 housing that measures 1.08" x 0.71" x 0.29".
