PEC2-60-4G8G-1R75-14-12-SFF Low Noise Amplifier
Available from Planar Monolithics Industries, Inc.

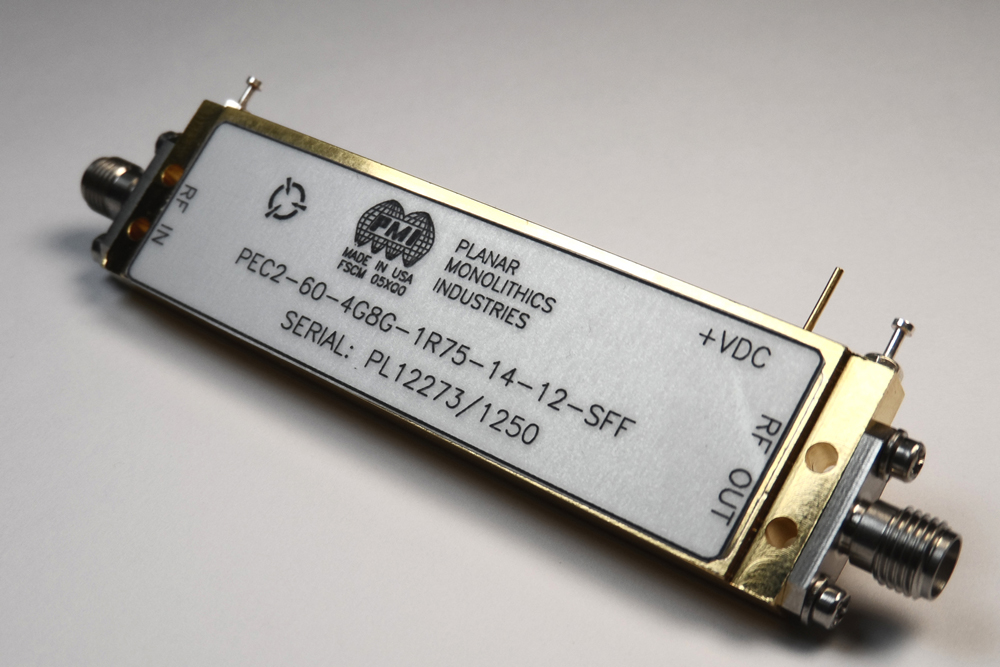

PMI Model No. PEC2-60-4G8G-1R75-14-12-SFF is a 4.0GHz to 8.0GHz low noise amplifier that typically provides 60dB of gain. The gain flatness is ±1.25dB maximum with a noise figure is 1.75dB maximum. This amplifier provides a minimum OP1dB of +14dBm. The VSWR is 2.0:1 maximum into 50 ohms impedance and operates on a single DC supply of +12 to +15 volts with 350mA nominal current consumption. This unit is supplied with field removable SMA female connectors and in our standard PEC2 housing that measures 2.98" x 0.78" x 0.26".
