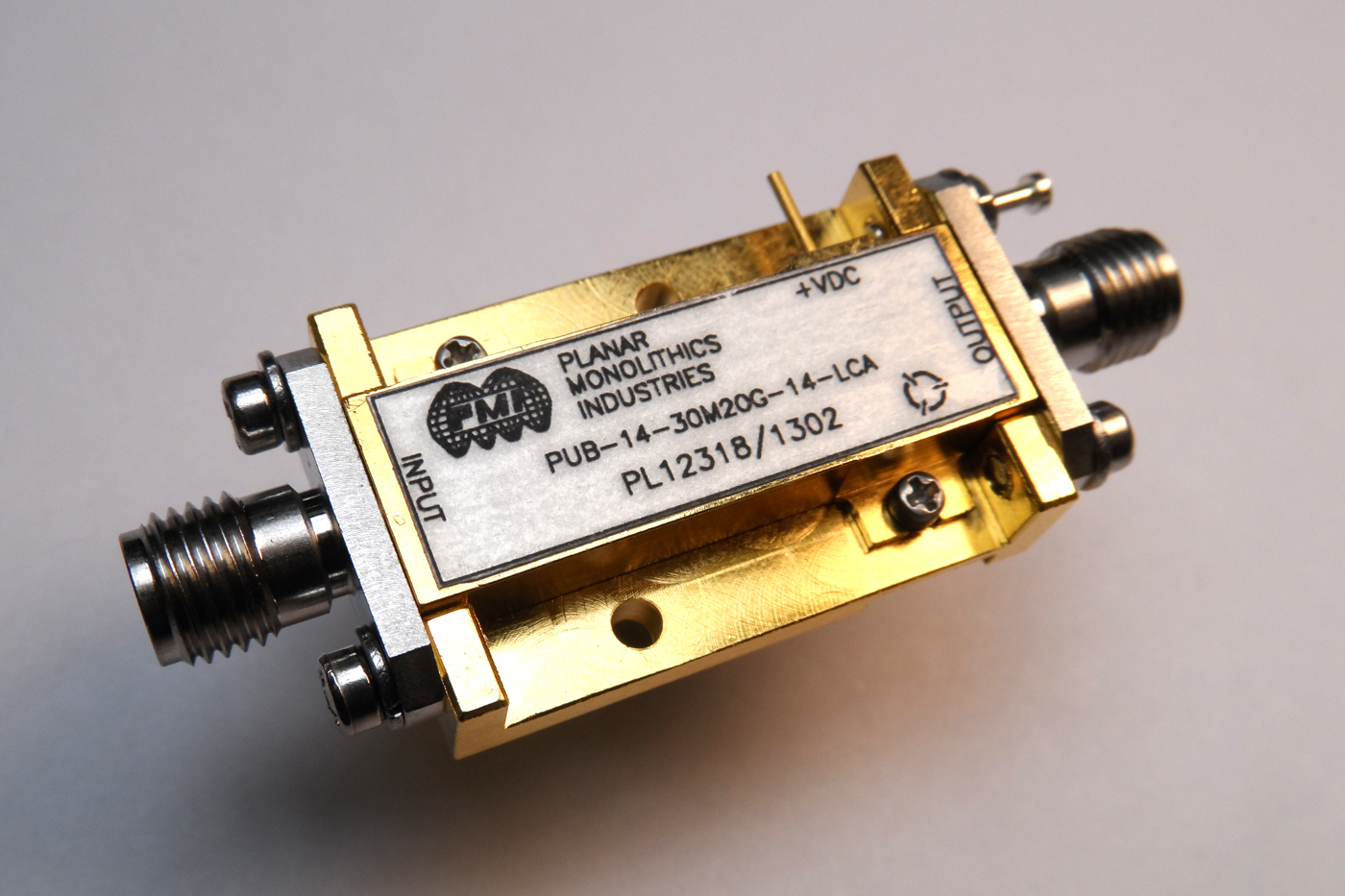

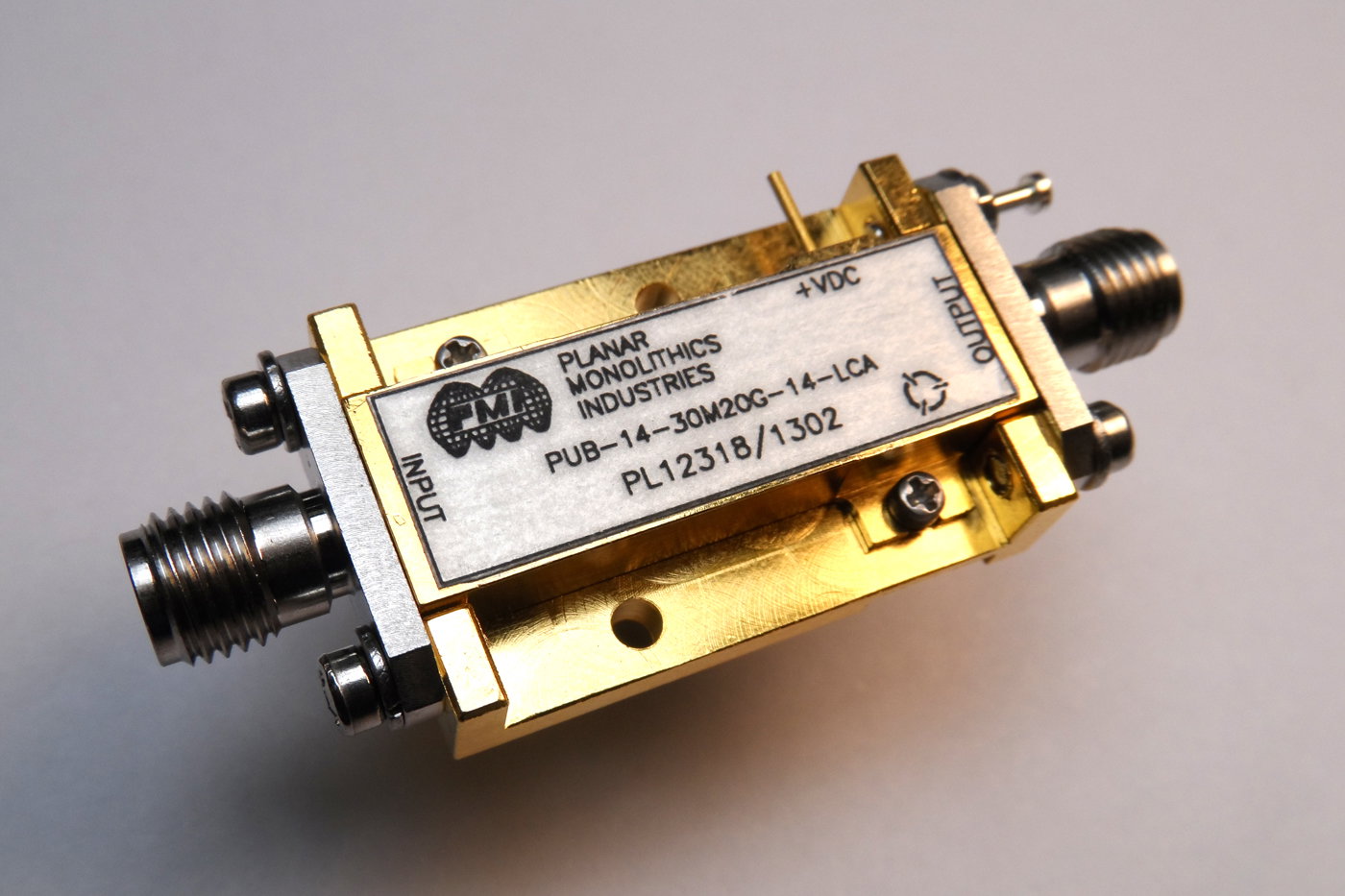

PUB-14-30M20G-14-LCA Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PUB-14-30M20G-14-LCA is a 30MHz to 20.0GHz Low Noise Amplifier which provides 14dB of gain while maintaining a gain flatness of ±1.2dB typically over the operating frequency. The noise figure is 3dB typical and offers an OP1dB of +14dBm typical. This amplifier requires +12 to +15VDC and the current draw is 75mA typical. The unit is supplied with SMA(F) connectors in our standard PE2 housing.
