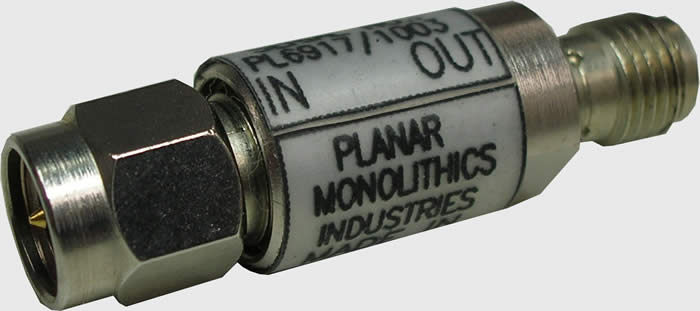

LM-30M3G-C3-1 High Power Limiter

Available from Planar Monolithics Industries, Inc.

PMI Model Number LM-30M3G-C3-1 is a high power limiter that operates from 30MHz to 3.0GHz. This limiter can handle input power levels up to 5 watts CW and provides a maximum leakage of +10dBm. The insertion loss is 1.2dB maximum with a maximum VSWR of 1.5:1. The recovery time is less than 1usec. This limiter is offered in a coaxial package measuring only 1.314" x 0.375" diameter.
