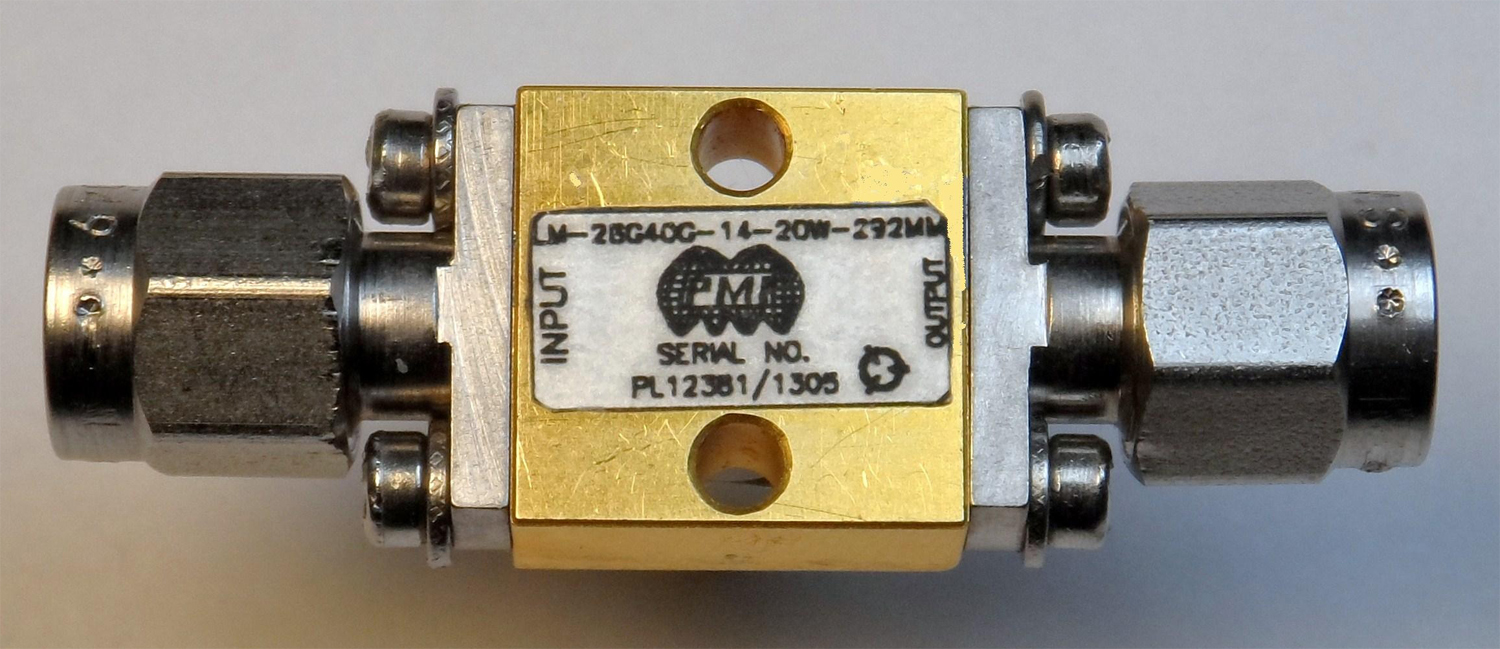

LM-26G40G-14-20W-292MM Limiter

Available from Planar Monolithics Industries, Inc.

Model LM-26G40G-14-20W-292MM is a high power limiter capable of withstanding an input power level of 20 Watts, 440 to 670nsec Pulse Width, PRF 600 to 900kHz, 40% Duty Cycle. This model operates in the 26.5GHz to 40GHz frequency range. The insertion loss is 4.0 dB maximum, VSWR of 2.0:1 and 250nsec response time and a typical leakage of +14dBm. This limiter is packaged in a small 0.50 X 0.50 X 0.22 housing and is supplied with 2.92mm male connectors.
