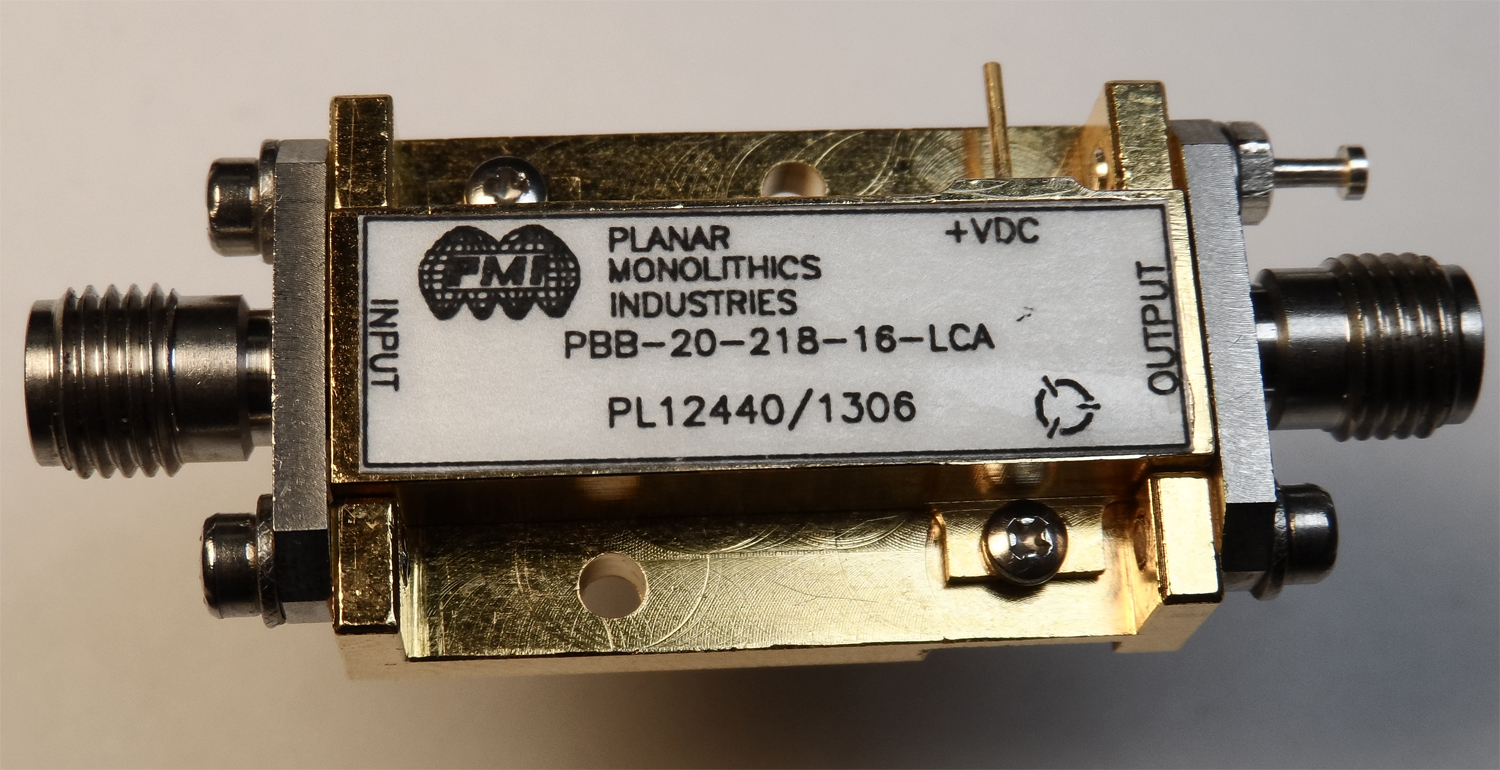

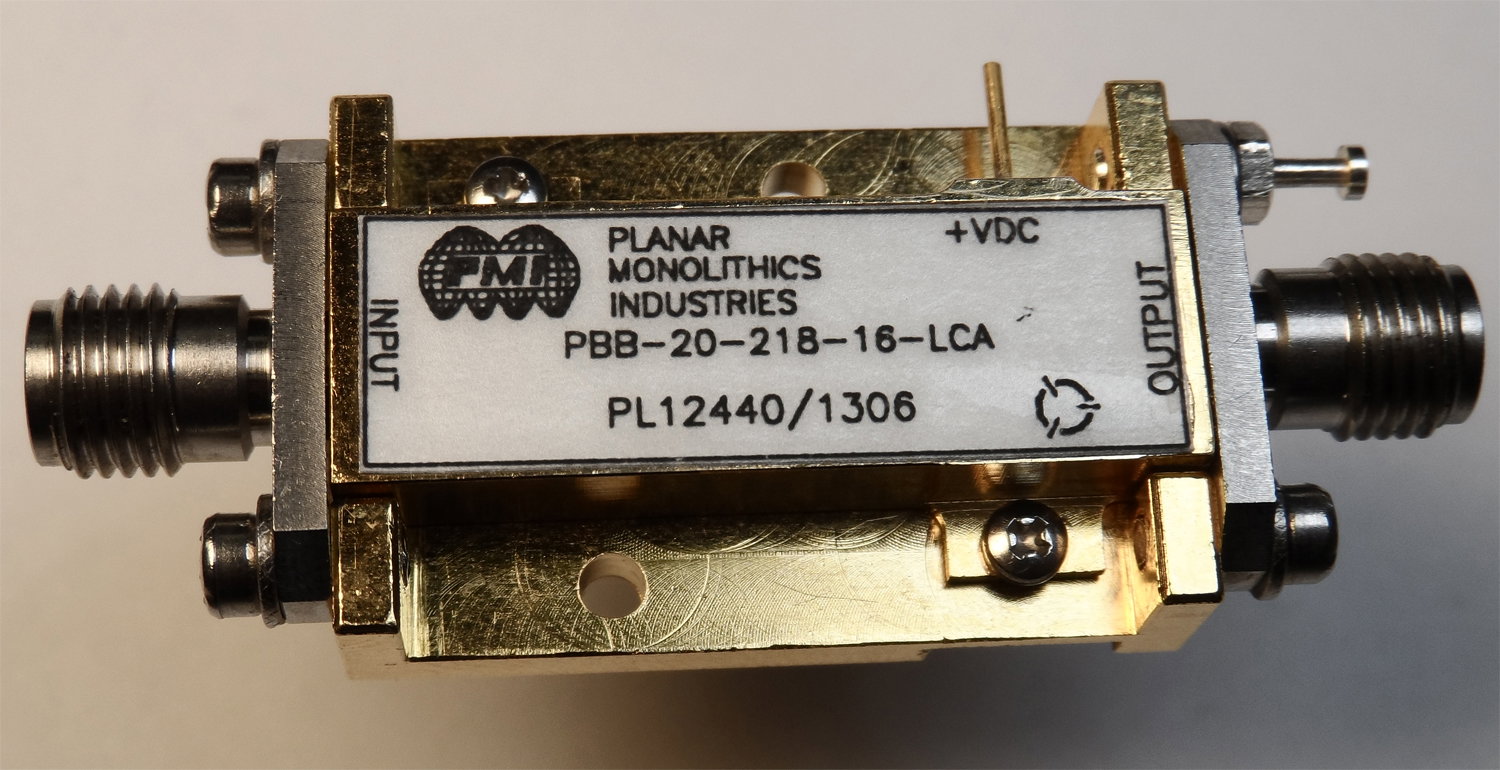

PBB-20-218-16-LCA Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PBB-20-218-16-LCA is a 2.0 to 18.0GHz Low Noise Amplifier which provides 20dB of gain while maintaining a gain flatness of ±2.0dB maximum over the operating frequency. The noise figure is 4dB typical and offers a typical OP1dB of +14dBm minimum. The amplifier requires +12 to +15VDC and the current draw is 150mA typical. The unit is supplied with SMA(F) connectors in our standard PE2 housing.
