PUB-15-500M20G-20-LCA Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

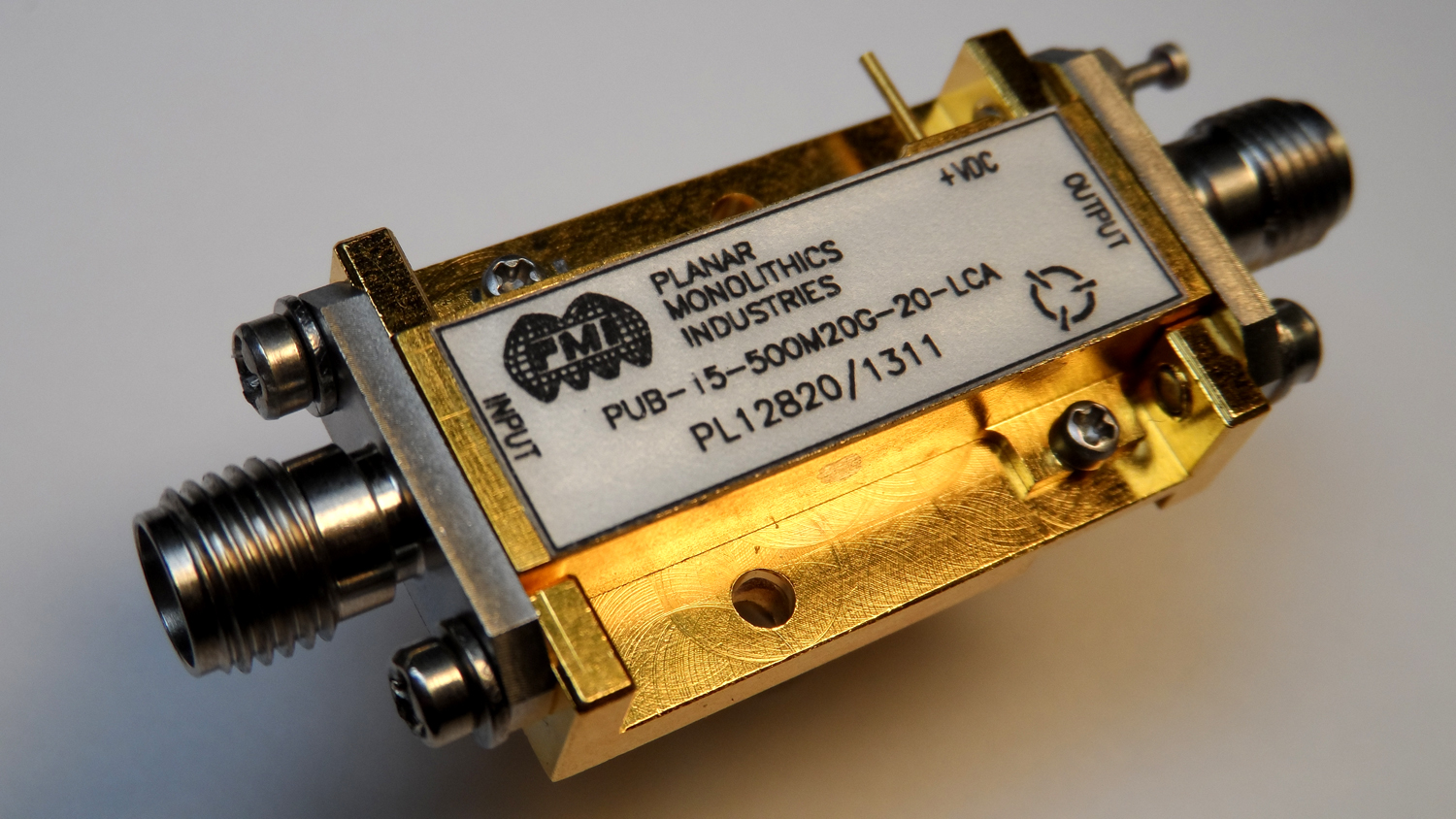

PMI Model No. PUB-15-500M20G-20-LCA is a 500MHz to 20.0GHz Low Noise Amplifier which provides 15dB of gain while maintaining a gain flatness of ±1.75dB typically over the operating frequency. The noise figure is 3dB typical and offers a typical OP1dB of +20dBm. The amplifier requires +12 to +15VDC and the current draw is 225mA typical. The unit is supplied with SMA(F) connectors in our standard PE2 housing.
