PE2-25-218-20-12-SFF Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

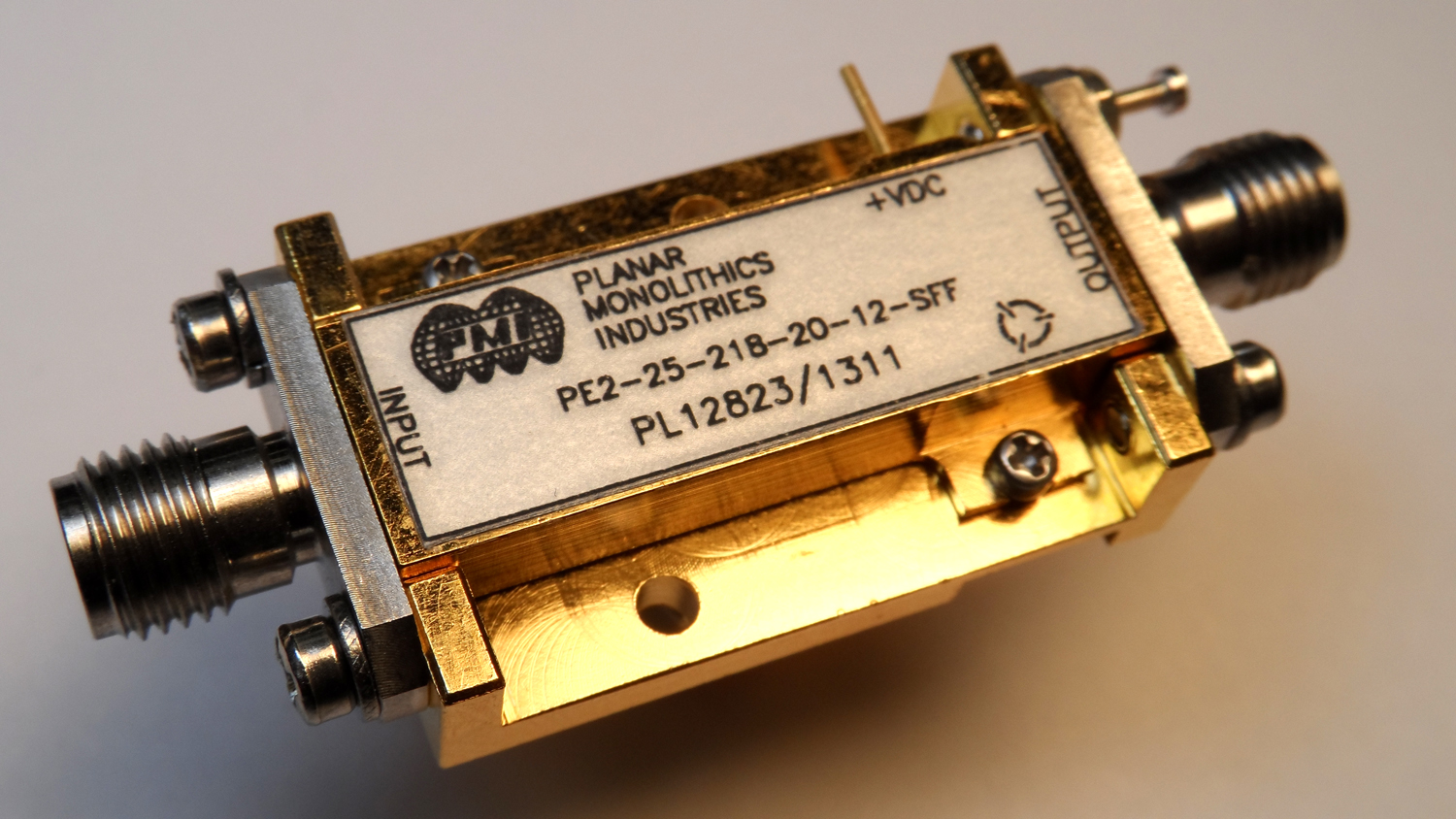

PMI Model No. PE2-25-218-20-12-SFF is a 2.0 to 18.0GHz Low Noise Amplifier that provides greater than 25dB of gain while maintaining a maximum gain flatness of ±1.5dB maximum over the operating frequency. The noise figure is 4.5dB typical and offers an OP1dB of +20dBm minimum. The operating voltage is +12 to 15VDC and the current draw is 300mA maximum. This amplifier is supplied in a our PE2 package that measures 1.08" x 0.71" x 0.29".
