PDVAN-8018-60-8-OPT25DBM Digitally Programmable Attenuator
Available from Planar Monolithics Industries, Inc.

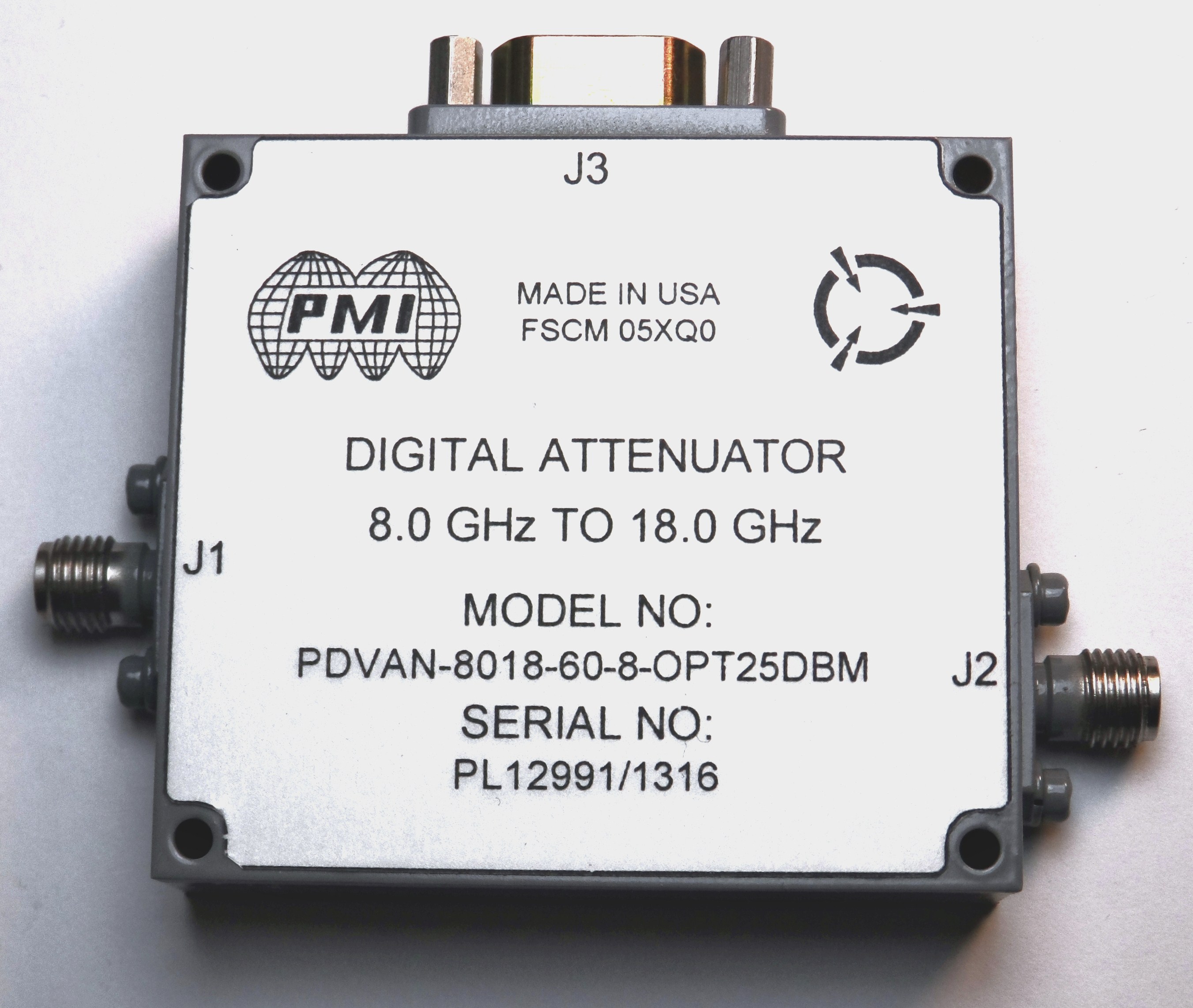

PMI Model No. PDVAN-8018-60-8-OPT25DBM is an 8-Bit digitally programmable attenuator that operates over the frequency range of 8.0 to 18.0GHz. This model offers low loss of 3.6dB typically and an attenuation range of 60dB. This model was designed to handle input power levels up to +25dBm CW under operating conditions and signal levels up to +30dBm CW without damage. The attenuation flatness over frequency is less than ±1.6dB at full attenuation. The switching speed is less than 800ns. This model is supplied in a housing that measured 2.0” x 1.8” x 0.5” and is supplied with SMA female connectors.
