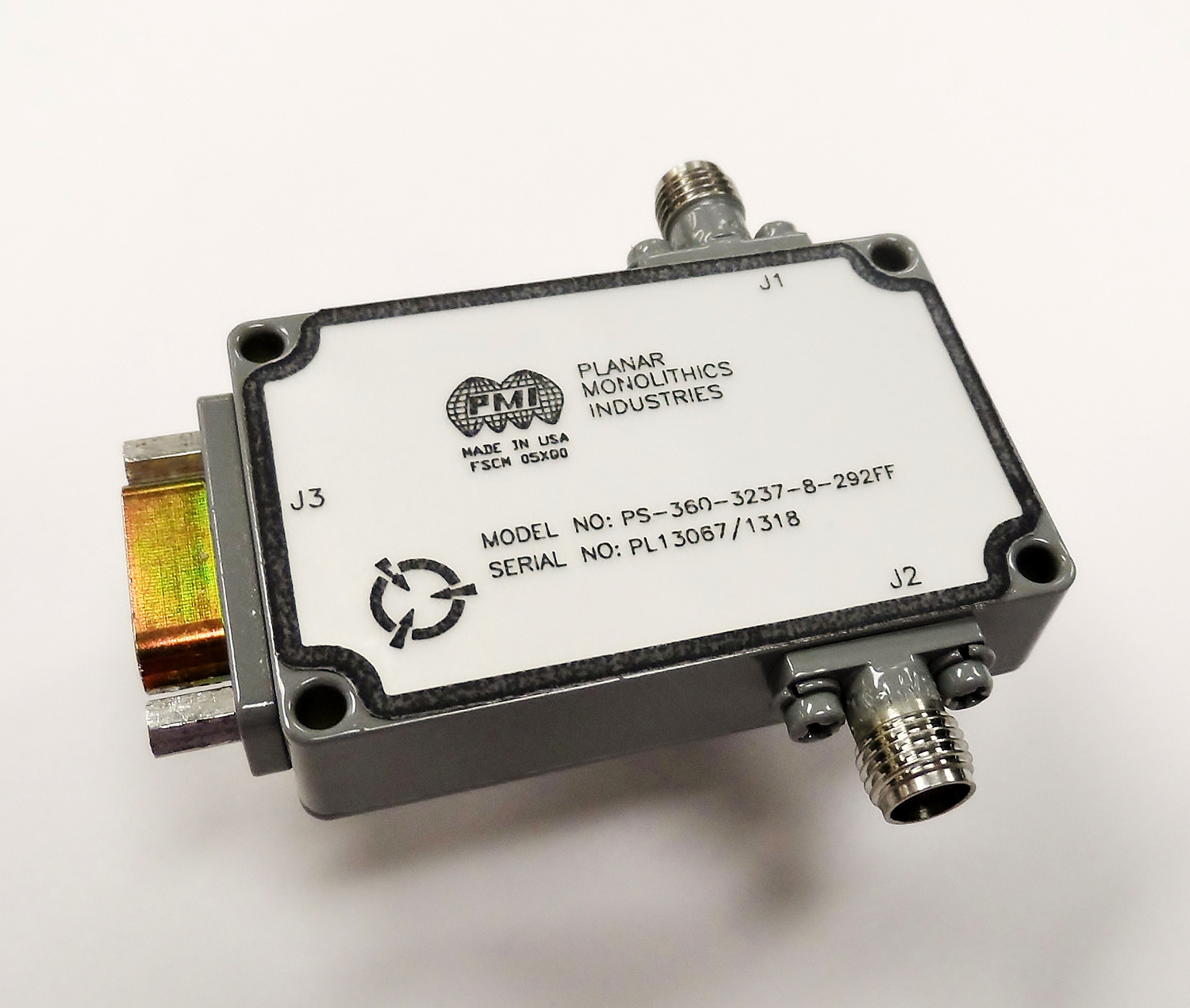

PS-360-3237-8-292FF Phase Shifter

Available from Planar Monolithics Industries, Inc.

PMI Model No. PS-360-3237-8-292FF is a High Speed, Millimeter Wave, 8-Bit Digitally Controlled, Phase Shifter that operates over the frequency range of 32.0 to 37.0GHz. This phase shifter offers a low insertion loss of 13dB typically and maintains a VSWR of 1.8:1. The total phase shift range is 358.593° having a step size of 1.406° and switches between states in less than 500ns. This model provides a high level of accuracy by offering an amplitude error of ±1.5dB and a phase shift error of ±1.3°. Ultra-Low DC Current consumption is offered at +15VDC, 20mA and -15VDC, 10mA. This unit is supplied in a small housing measuring 1.15” x 1.80” x 0.4” with 2.92mm female connectors.
