11DP-11R5 16R5-CD-SFF-1 Diplexer

Available from Planar Monolithics Industries, Inc.

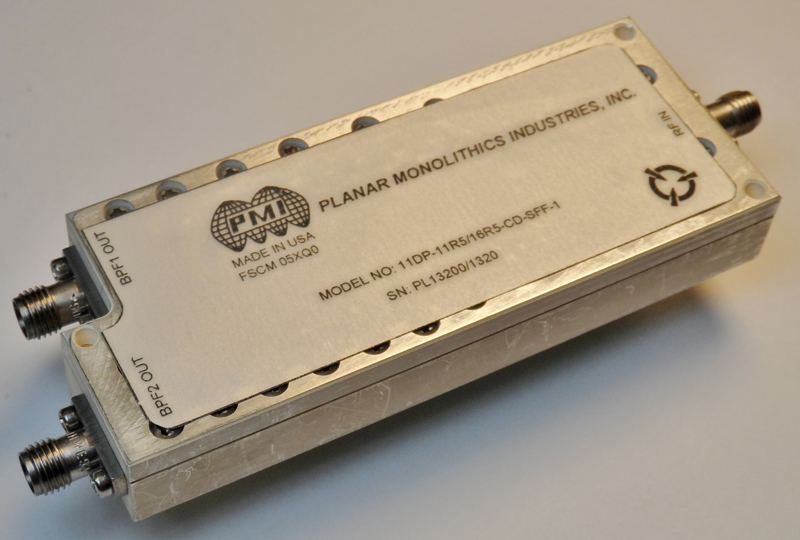

PMI Model No. 11DP-11R5/16R5-CD-SFF-1 is a diplexer that offers passbands at 10.75 to 12.25GHz and 15.75 to 17.25GHz. The passband insertion loss is less than 3dB and the VSWR is 1.5:1 maximum. Filter channel 1 has a passband of 10.75 to 12.25GHz and offers -50dBc of rejection at 10.25GHz and -75dBc of rejection at 13.75GHz. Filter channel 2 has a passband of 15.75 to 17.25GHz and offers -50dBc of rejection at 17.75GHz and -75dBc of rejection at 14.25GHz. Insertion loss flatness of +/-0.3dB Max. across the passband is achieved with fine tuning and silver plated metal. The housing measures 3.5" x 1.4" x 0.5" and is offered with field removable SMA female connectors.
