PEC-42-500M40G-20-12-292MM Low Noise Amplifier
Available from Planar Monolithics Industries, Inc.

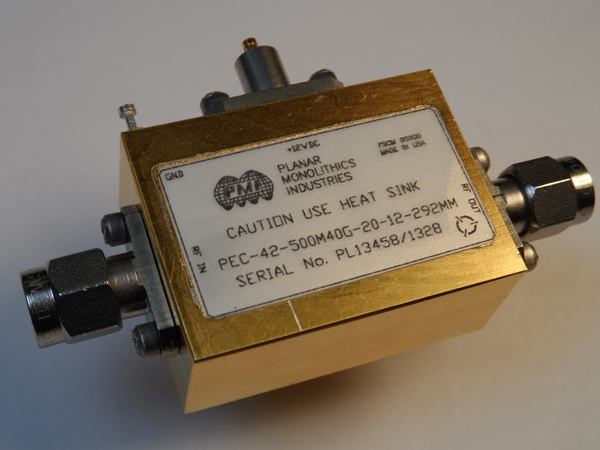

PMI Model No. PEC-42-500M40G-20-12-292MM is a 500MHz to 40GHz Ultra-Wideband Low Noise Amplifier that provides typically 42dB of gain with a noise figure of 5.5dB at 20GHz. The OP1dB is typically +22dBm (1.0 to 18.0GHz) and +19dBm (18.0 to 40.0GHz). The maximum input power rating is +17dBm CW and the operating DC supply is 450mA at +12 to +15VDC. This unit is supplied in a package measuring 1.37” x 1.0” x 0.6” with 2.92mm male connectors.
