P2T-960M977M-30-R-528-SFF-20W single pole, two throw, reflective switch

Available from Planar Monolithics Industries, Inc.

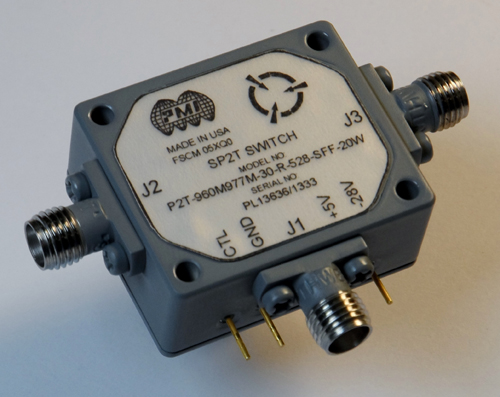

PMI Model No. P2T-960M977M-30-R-528-SFF-20W is a single pole, two throw, reflective switch capable of handling input power up to 20 Watts CW. The frequency range is 960 to 977MHz and it has over 40dB of typical isolation with a switching speed of less than 40nsec. The unit is supplied with SMA Female connectors in a package measuring 1.2" x 1.0" x 0.5".
