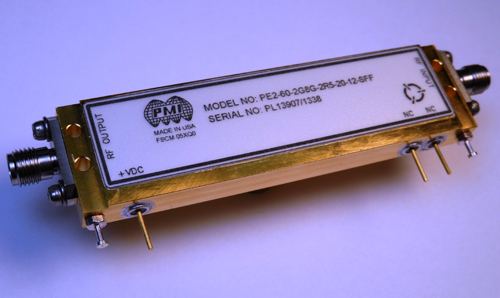

PE2-60-2G8G-2R5-20-12-SFF Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model Number PE2-60-2G8G-2R5-20-12-SFF is a 2.0 to 8.0GHz low noise amplifier which produces 60dB of gain with a maximum noise figure of 2.5dB. The OP1dB is >20dBm and the VSWR is 2.0:1 maximum. This amplifier operates on a DC voltage supply of +12 to +15 volts and the current draw is 475mA maximum. The housing measures 2.98” x 0.78” x 0.26” and is supplied with SMA Female connectors.
