PE2-34-1R251R75-12-SFF-1 Low Noise Amplifier
Available from Planar Monolithics Industries, Inc.

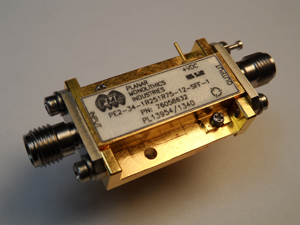

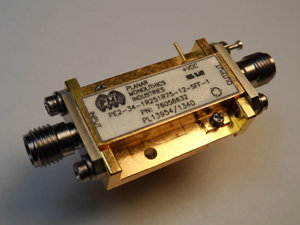

PMI Model Number PE2-34-1R251R75-12-SFF-1 is a 1.25 to 1.75GHz, Temperature Compensated, Low Noise Amplifier with 34dB of gain with a typical gain flatness of +/-0.25dB. The noise figure is typically 4.98dB and offers a minimum OP1dB of 0dBm. The amplifier requires +7 to +12VDC and the current draw is 198mA typical. The unit is supplied with removable SMA(F) connectors in our standard PE2 housing.
