PEAFS3-12-218-15-SFF-1 Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

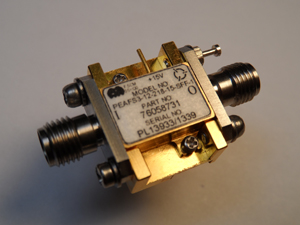

PMI Model No. PEAFS3-12-218-15-SFF-1 is a 2.0 to 18.0GHz low noise amplifier that provides +15 to +22dB of gain. The noise figure is 5.0dB max from 2.0 to 4GHz and 4.1dB max at 4.0 to 18.0GHz and offers an OP1dB of +9dBm min. The operating voltage is +15VDC and the current draw is 180mA max. This unit is supplied with removable SMA(F) connectors in a gold plated housing that measures 0.53" x 0.36" x 0.18"
