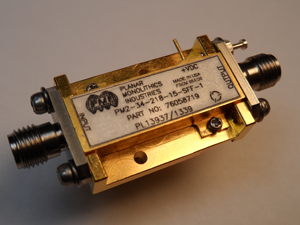

PM2-34-218-15-SFF-1 Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PM2-34-218-15-SFF-1 is a 2.5 to 18.0GHz low noise amplifier with a gain window of 32.0 to 36.0dB @ -40ºC to +95ºC and 32.0 to 37.0dB @ -54ºC to +95ºC and a gain flatness of +/-1.5dB max. The noise figure is 4.7dB max and offers an OP1dB of +16dBm min. The operating voltage is +15VDC(+/-10%) and the current draw is 350mA max.
