4BP160-5-2A-PP LC Bandpass Filter

Available from Planar Monolithics Industries, Inc.

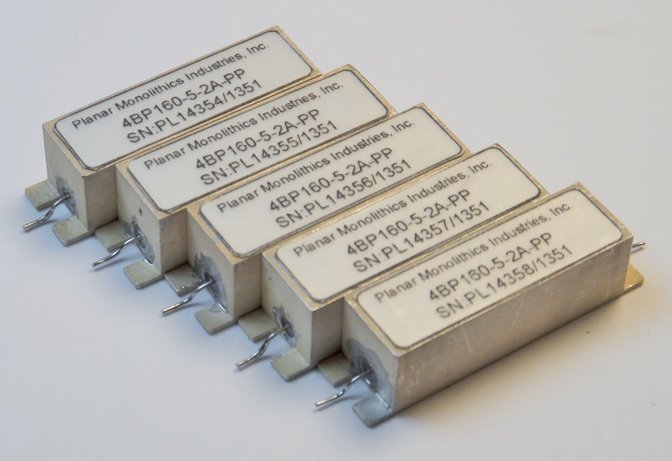

PMI Model No. 4BP160-5-2A-PP is an LC Bandpass filter centered at 160MHz with PC Pins in and out.

Center Frequency 160MHz, +/-0.23%
3dB Bandwidth 5MHz, +/-5%
VSWR in the Pass Band 1.5:1 max
Pass Band Insertion Loss 10dB nom
Rejection 4 Section Response
Connectors In/Out PC Pins
Size 1.2" x 0.31" x 0.31"
