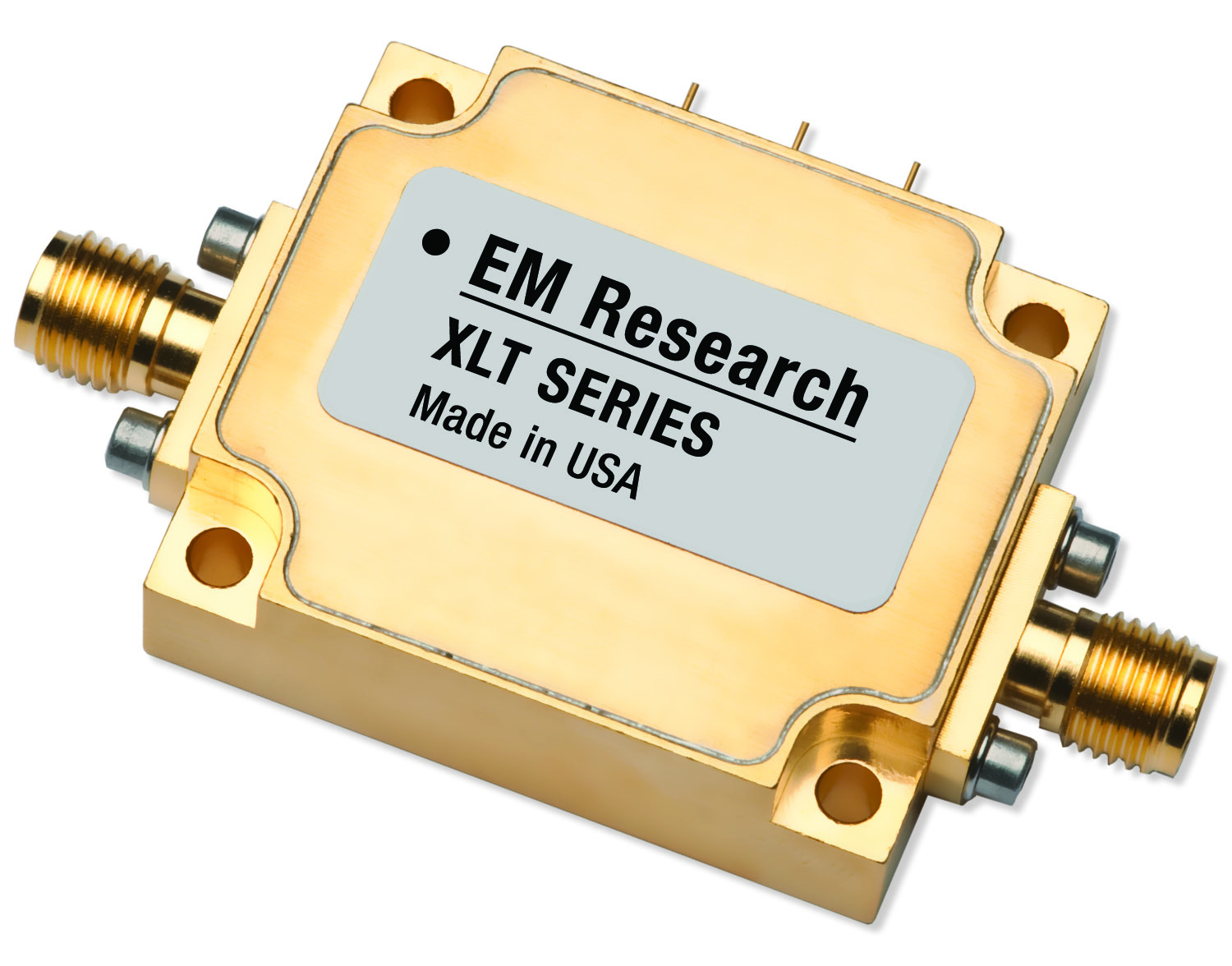

XLT Series

Product Details

Hi-Rel crystal oscillator replacement. High vibration tolerance (12 g's RMS operating). Low power consumption < 500 mW. No-warm-up required. Optionally hermetically-sealed per MIL-STD-883. 6 to 500 MHz


PRODUCT FEATURES

• High vibration tolerance: 12 g’s RMS Operating
• Optionally hermetically-sealed per MIL-STD-883
• No warm-up time, instant turn-on

GENERAL CHARACTERISTICS

• Fixed Frequency: 5 - 500 MHz
• Temperature Range: -40oC to +85oC Operating
• Phase Noise (Fout=56 MHz): <-135 dBc/Hz @ 10 KHz
• Modular Package: 1.3” x 1.1” x 0.4”
(33.0 x 27.9 x 10.2)mm
