SLX Series
Available from EM Research Inc
Product Details

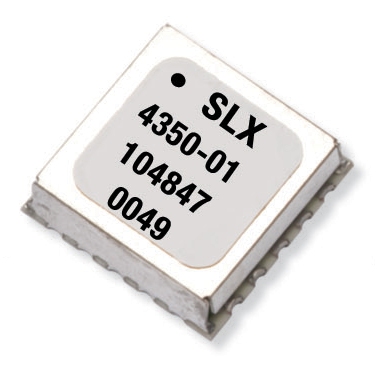

Ultra miniature frequency synthesizer, 0.5" x 0.5" x 0.15" (12.7 x 12.7 x 3.8)mm. Fixed or serially programmable. Output buffer. Phase noise (Fout = 290 MHz) <-100 dBc/Hz @ 10 KHz. Available up to 6 GHz.
SLX Series Ultra-Miniature, Low Power Consumption
PRODUCT FEATURES
• Fixed-frequency or serially-programmable
GENERAL CHARACTERISTICS
• Frequency: 50 MHz - 6 GHz
• Bandwidth: Fixed, to > 30%
• Phase Noise (Fout=290 MHz): <-100 dBc/Hz @ 100 KHz
• Supply Voltage: +3, +3.3, or +5 VDC
• SMT Package: 0.5” x 0.5” x 0.15”
(12.7 x 12.7 x 3.8)mm
