Product Details

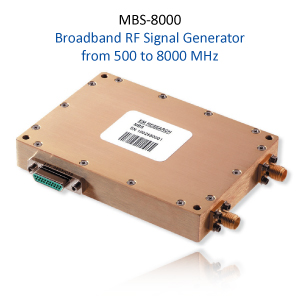

The MBS is small (3.5” x 2.5” x 0.6”) and has female SMA connectors on the reference and RF I/O ports. The programming connector is a Micro-Mini-D, 21-Pin Male. The unit includes an easy-to-use and easy-to-install GUI interface for laboratory or field-programming via PC.


•Frequency: 500 to 8000 MHz
•Reference: 10 MHz, External (Optional Internal Reference)
•Step Size: 100 KHz
•Switch Speed: <10 mSec
•Output Power: +7 dBm
•Harmonics: <-20 dBc
•Spurs: <-60 dBc
•VCC: +5V @ 230 mA
•Temperature Range: -30°C to +70°C, Operating
•Phase Noise @ 500 MHz: <-110 dBc/Hz @ 100 KHz
•Phase Noise @ 8000 MHz: <-95 dBc/Hz @ 100 KHz
•Package: 1.5" x 1.5" x 0.6"
Applications: Automatic Test Equipment (ATE), Portable RF Signal Generation, Engineering / Production Lab Source, Software Defined Radios and other Electronic Warfare Applications
