Extremely fast switching synthesizer, <1 µSec. Power consumption< 1 watt. Frequencies from 20 to 6600 MHz. Supply voltage +5 VDC @ 500mA. Available step sizes down to 1 KHz. Phase noise (Fout = 6 GHz) <-115 dBc/Hz @ 100 KHz.

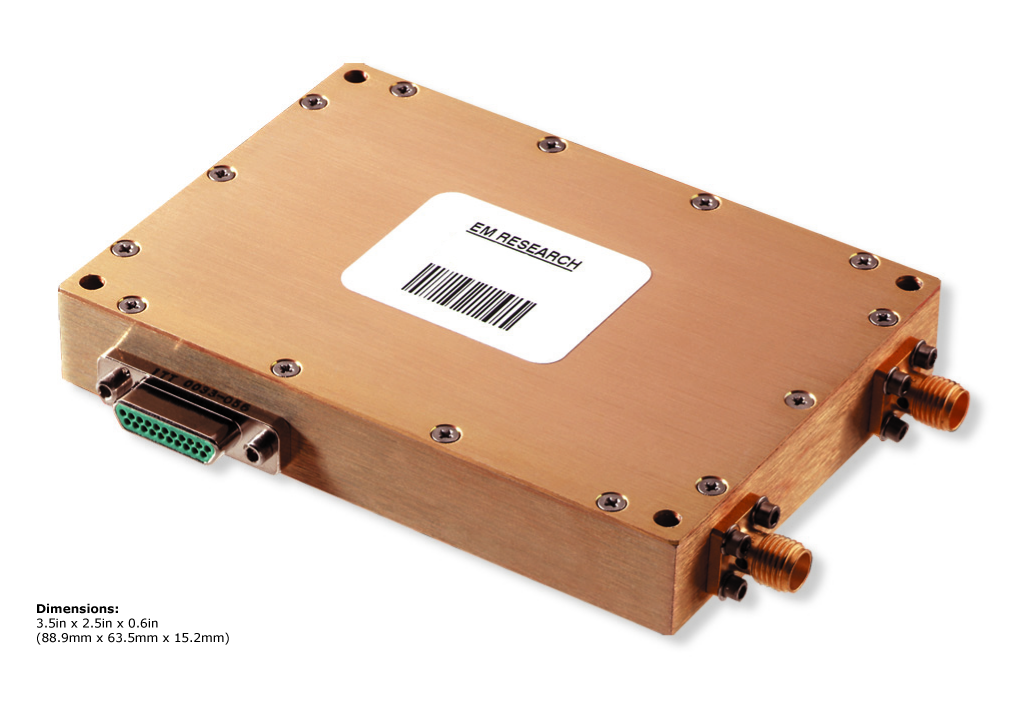

FST Series, designed for extremely fast switch speeds of less than 1 µsecond and less than 1 µsecond delay. This cost-effective, narrowband programmable test source is available in custom bands up to 6600 MHz and custom step sizes down to 1 KHz. The FST Series offers low power consumption and low phase noise characteristics, -110 dBc/Hz @ 100 KHz, as well as, phase coherent switching and parallel binary frequency control. The FST units operate at a temperature range of -30°C to +70°C and supply voltage of +5V @ 500 mA typical and comes in a small package of just 3.5” x 2.5” x 0.6”.
Applications: Narrow to wideband DS synthesizer, programmed test source for Digital Radio, SATCOM, Radar and other communications equipment.
