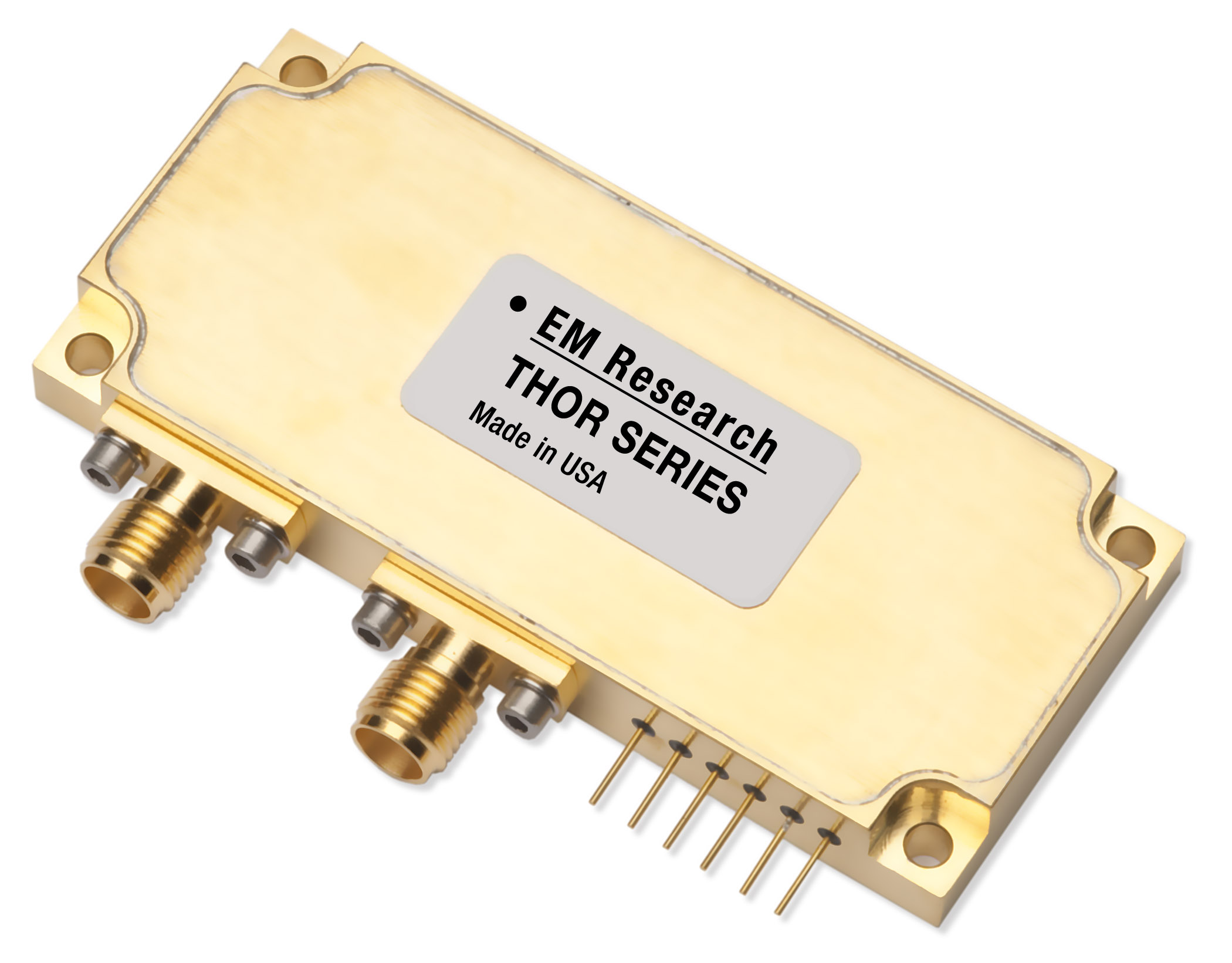

THOR Series: Frequency Synthesizer Designed for VSAT Radio Receiver


The THOR-14000 frequency synthesizer from EM Research is used as a Local Oscillator for a VSAT Radio Receiver. The unit operates from 13800 to 14000 MHz with 1MHz step size utilizing a 10 MHz reference. The THOR-14000 features fast switching speeds (<500 mSec), +7 dBm output power, and low phase noise (<-85 dBc/Hz @100 KHz typical). The THOR is housed in a connectorized (optional hermetically sealed), 2.5” x 1.1” x 0.4” (63.5mm x 33mm x 10.2mm) package and features two removable SMA connectors which can be gull-winged for SMT applications.


Applications: The THOR Series, Ku / K-Band frequency synthesizers are ideal for Manpack Radios, UAV, EW, IED Jamming and other mobile applications requiring a high frequency, lightweight design with low power consumption.
