MX Series

Product Details

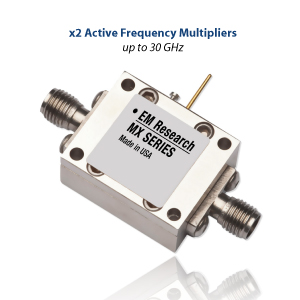

MX Series: X2 Active Frequency Multipliers to 30 GHz

MX Series, a X2 active frequency multiplier with integrated output filter producing low subharmonics (<-60 dBc, typ).


Features:

•Frequency: 10 to 30 GHz
•Bandwidths: up to 20%
•Nominal Conversion Gain: 7 to 10 dB
•Input Level: 0 to +7 dBm
•Output Power: +7 to +10 dBm
•Output/Input Isolation: >20 dB
•Low Spurs: <-80 dBc
•Supply Voltage: +5 VDC (+12 VDC Optional)
•Package: 0.96" x 0.80" x 0.43"
Applications: Radio Transceivers, Satellite Communications Systems
