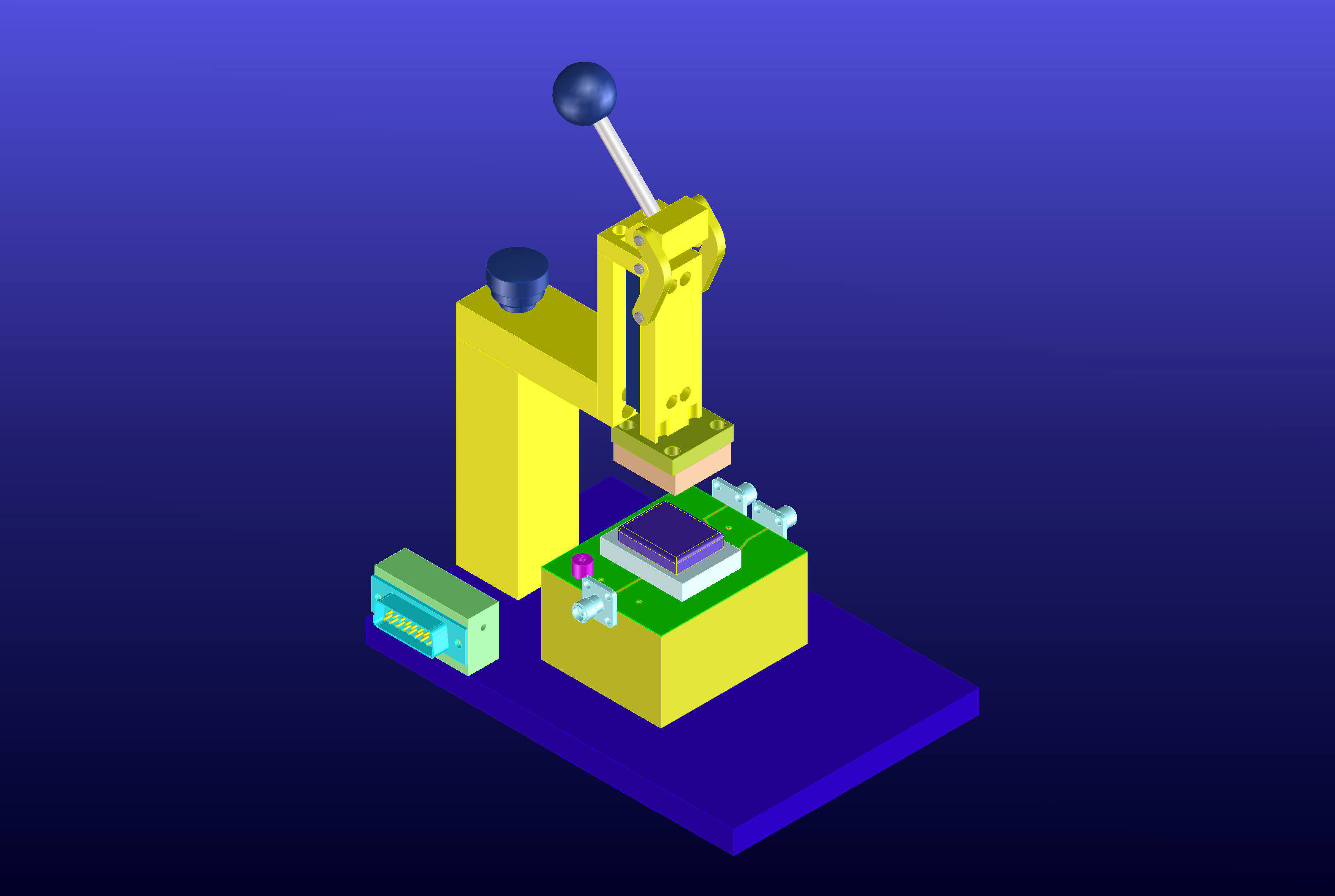

Surface Mount chip capacitors (single or multi-layered), inductors or resistors can be measured on Inter-Continental Microwave's (ICM) Surface Mount Chip Component Test Fixture. The Test Fixture is designed as a solution for making measurements in a Series-Thru test configuration. Input and output launches are on Microstrip lines. (Customer determines what type of Microstrip is used, 25 mil Alumina is standard.) Adjustable guides
on the fixture ensure accurate and repeatable placement of the chip. De-embedding with TRL / LRM or TOSL Calibration Standards removes the effect of the test fixture from your measurements. For custom sized devices, please contact the factory .
