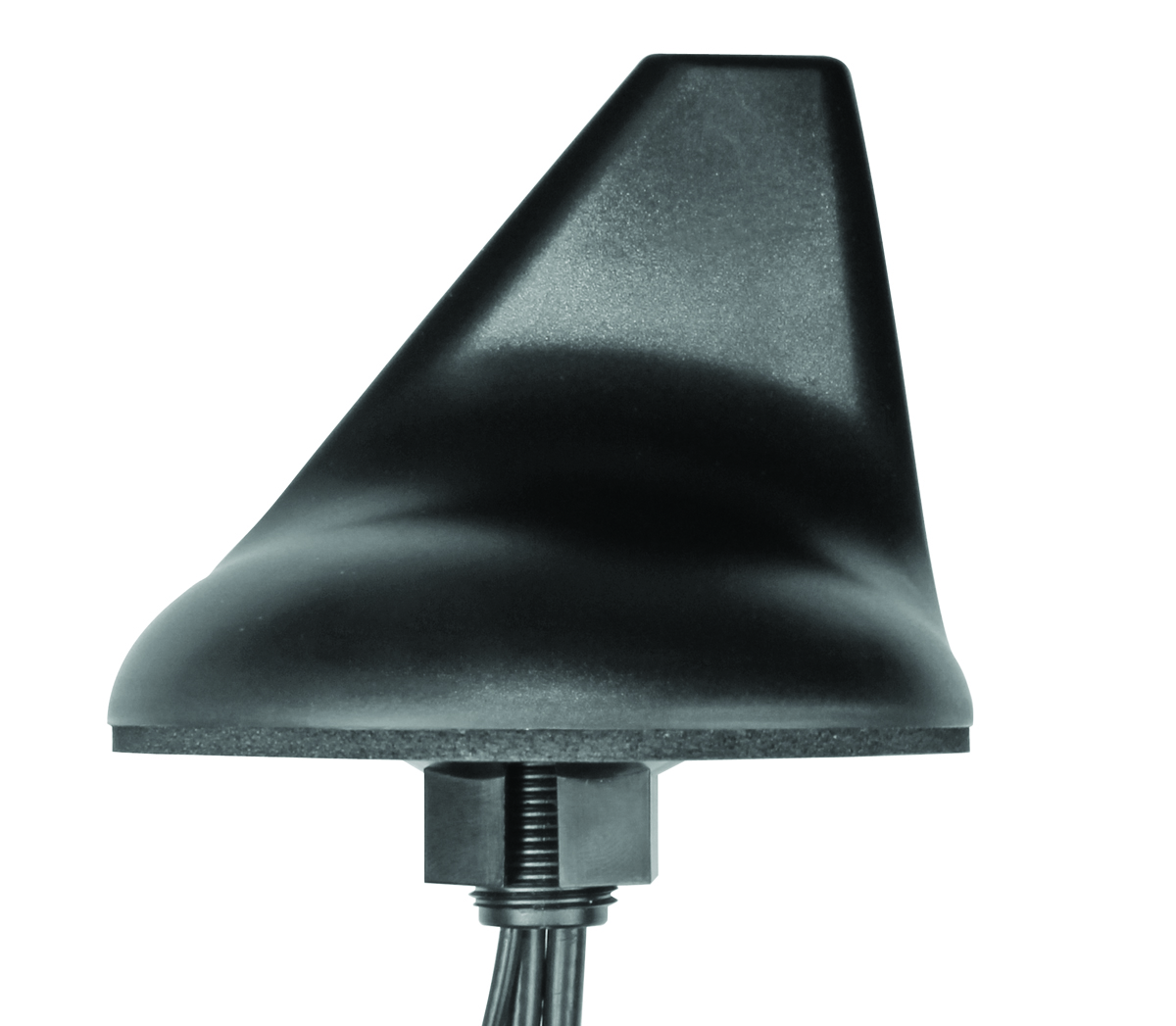

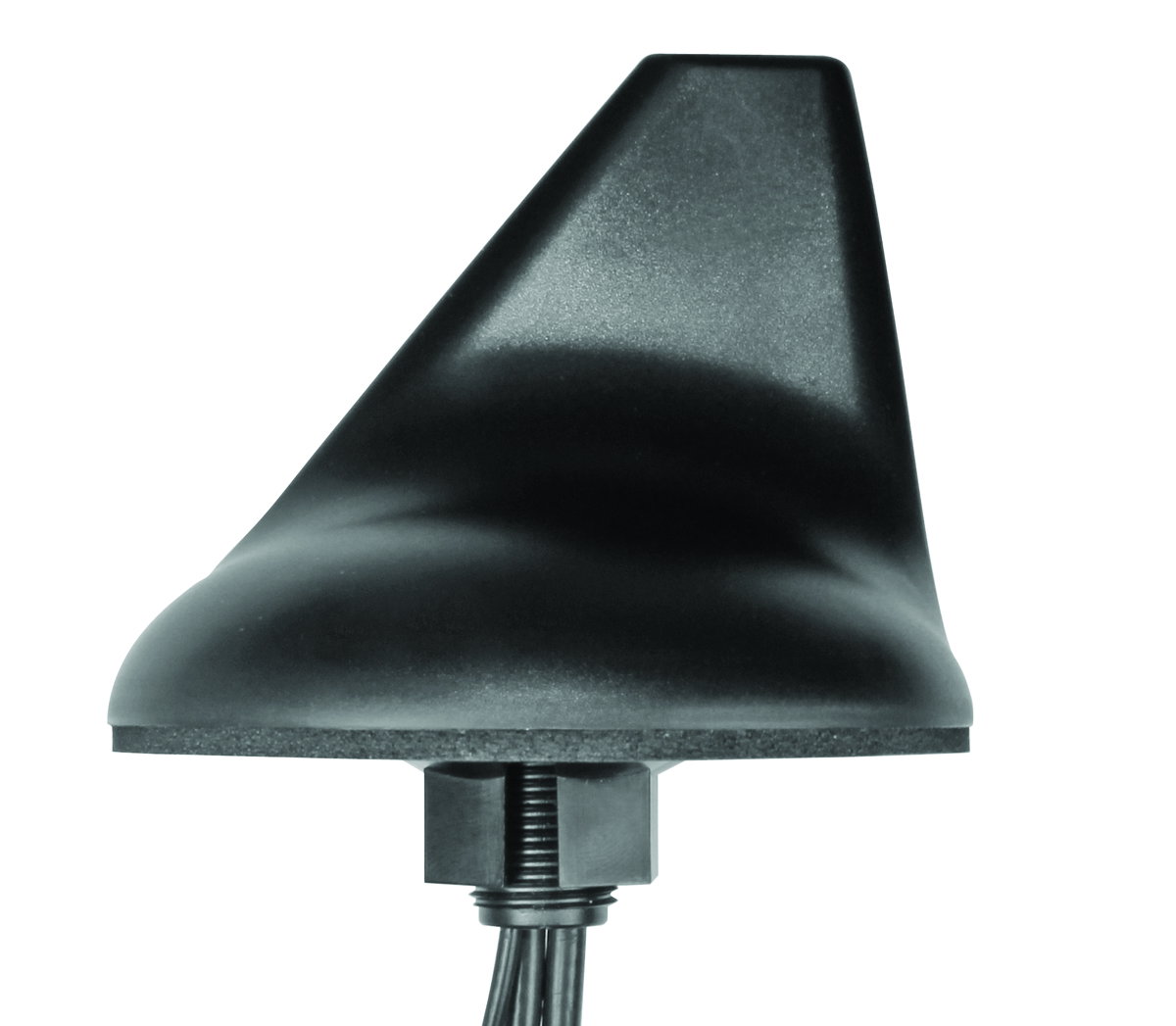

Pulse is proud to introduce a new state-of-the-art direct
mount multi band antenna. This body mount antenna
operates from 698 thru 2485 MHz, including LTE, and is
available with or without GPS. Coming in Q3 2012: 5 GHz capabilities added to the antenna. The antenna is ideal for
voice, mobile data, Public Safety, WLAN and asset tracking
applications. The rugged, yet aesthetically pleasing
design provides UV and IP-65 protection to ensure a
long, reliable, maintenance-free life.
The antenna mount can accommodate up to a
5/8” (16 mm) thick surface. Antennas equipped with GPS
have 3 cables to optimally support the different technologies.
Wireless voice, data and LTE frequencies are supported
by a single low-loss RG-58 cable. WLAN operates
on a separate RG-58 cable. The 26 dB gain GPS antenna
has it’s own RG-174 cable. Additional cable configurations,
lengths and connector options are available upon
