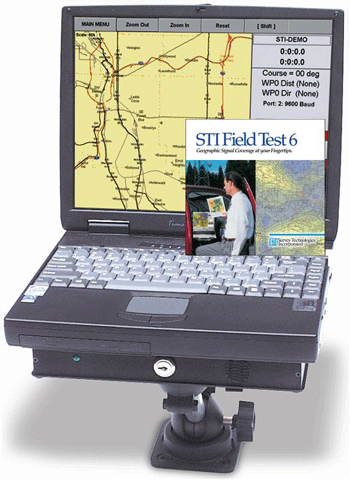

The STI-9400 Laptop Signal Measurement & Analysis System
Available from Survey Technologies Inc
From measurement to report, it's the most complete, cost-effective, and easy-to-use laptop signal analysis system on the market. Now you can analyze RF signal coverage completely, get real time results, and even print your reports while in the field. The STI-9400 series systems incorporate a 1MHz to 1GHz scanning receiver and GPS to fully automate drive test measurement, analysis and report of RF signal coverage across geography. Critical for New Site Setup, Proof of Performance and Ongoing System Maintenance, the 9400 quickly and cost effectively translates large amounts of signal measurement data into clear concise reports.
While conducting drive-tests the position of historical measurements, the current position of the vehicle and the street map of the area are displayed in real time (above left). The latest measurement results for all the frequencies measured are also displayed during the drive-test. At any point the operator can stop measurements and create a coverage map from the measured data. This is a good way to identify signal anomalies which require more measurement detail while the test vehicle is still in the area.
