Custom Push-Lock SMB Connectors Provide Positive Contact in High Vibration Environments

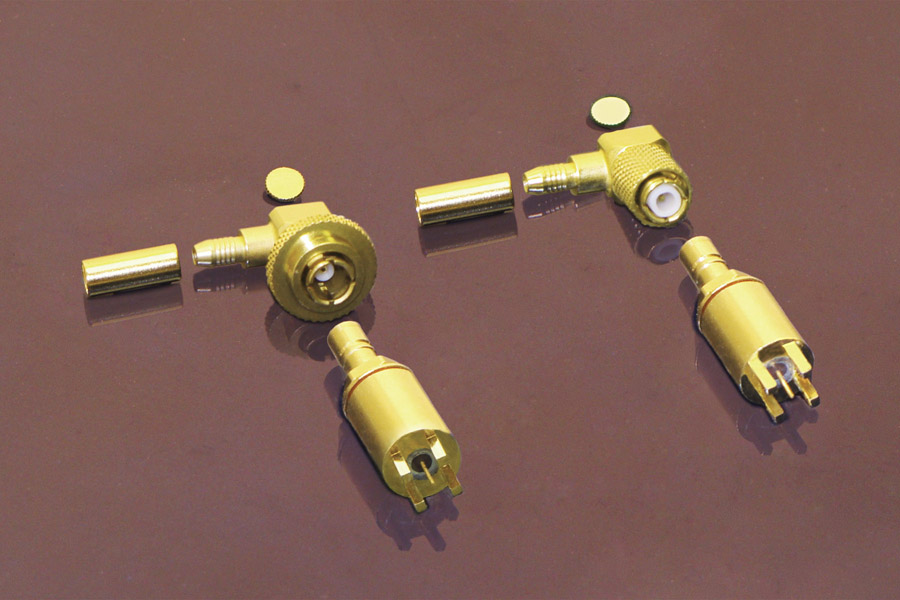

The SMB connector is a follow-on design to the SMA and features a smaller interface with a snap-on coupling. For high vibration environments, the 2 pound minimum disengagement force of the standard SMB design is not sufficient. Aviel Electronics has added a push-lock feature to the standard MIL-STD-348 snap-on coupling SMB design. That increases the disengagement force to a minimum of 5 pounds. A locking shell pushes over the mated interfaces, locking the interface while allowing full rotation of the mated pair. Pulling back the shell allows the interfaces to be disengaged. The mating pairs include a right angle plug with crimp attachment for RG-174U cable. The jack interface is designed for standard PC board and bulkhead mounting. Connectors are hermetically sealed and meet the IP68 immersion test. Pictured are standard and reverse polarity interface pairs. Typical SMB electrical performance applies, 0-4 Ghz low reflection frequency range and usable up to 10 Ghz. Shown is Gold plated machined brass body construction. (optional stainless steel bodies are also available)
Aviel Electronics, a sister company to RF Connectors designs and manufactures custom RF connector and adapter solutions. Contact the factory with your requirements at (877) 805-7381 or (702) 739-8155, fax (702) 739-8161, email [email protected]. Aviel is a division of RF Industries (NASDAQ: RFIL).
