Multi-Octave RF Upconverter (MORF™)

Available from NuWaves Engineering
Product Menu
View Company Profile View all Products

Product Details

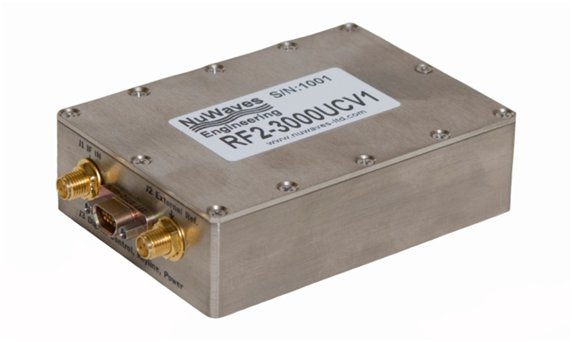

The RF2-3000UCV1 is a wideband IF-to-RF Upconverter. The upconverter accepts an IF in the range of 2 MHz to 70 MHz as an input. The IF is upconverted to any desired frequency in the range of 2 MHz to 3 GHz. The upconverter utilizes a straight-forward command/control serial interface for ease of integration.

The upconverter provides 50 dB of dynamic range performance over the 2 MHz to 3 GHz frequency range, in steps of 5 kHz. The IF bandwidth of the upconverter is user selectable as 4 MHz or 35 MHz.

The upconverter accepts RS-232 command/control data from a host controller with multi-drop capability. The primary host functions are:

§ Programming the upconverter's synthesizers (setting the output frequency)

§ Programming the upconverter's address

§ Selecting the operational bandwidth

§ Selecting the system attenuation

§ Selecting frequency reference

o Internal Reference

o External Reference

The physical interface to the upconverter is a 9-Pin Micro-D socket which enables the upconverter to be mated with a host controller via a cabling harness and three SMA female connectors for IF input, external reference input, and RF output. The upconverter's simple interface consists of a single supply voltage, basic command/control lines and keyline control.
