Surface Mount Dual Directional Coupler
Available from Innovative Power Products, Inc
300 Watt, 50dB Dual Directional Coupler

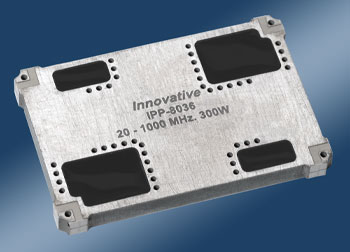

Innovative Power Products introduces their Model IPP-8036, a 300 watt, 50 dB, Surface Mount Dual Directional Coupler that operates from 20 – 1000 MHz.
The IPP-8036 is a unique broadband design which provides separate coupled ports for both forward and reflected signals with internal Terminations. This coupler is produced in a Surface Mount (SMD) package size of 1.50 x 1.00 inches. Insertion Loss is less than 0.35 dB, main line VSWR is less than 1.25:1, coupled flatness is +/- 1.5 dB and directivity is greater than 20 dB.
