Devens, MA - Response Microwave, Inc. a global specialist in providing RF/Microwave customer solutions, is pleased to announce the availability of its new drop-in or connectorized hybrid couplers
suitable for use as a directional coupler or 90º quadrature hybrid.

The new RMCL series offers average power handling options between 60W and 1400W average
and nominal coupling options from 2.8dB through 52dB. Typical electrical performance includes insertion
loss of 0.3dB, VSWR of 1.20:1 and isolation of 20dB. Units can be cascaded to obtain broad band
widths and is ideal for use in military power amplifier combine/divide stages or antenna feed networks.

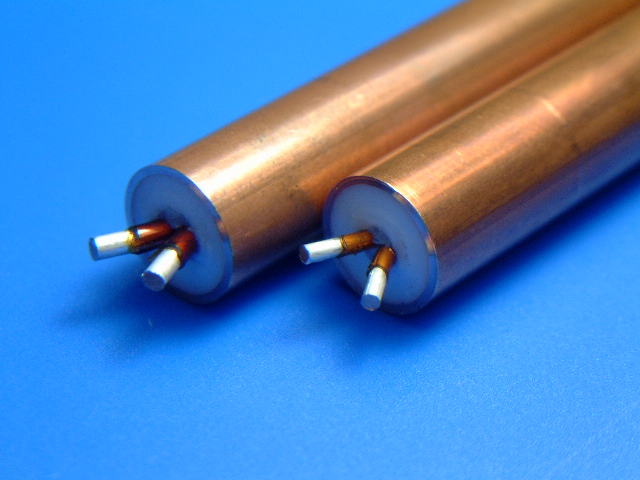

Part of the HYBRIDLINE family of board mount couplers, the new devices are available in bulk 1 meter lengths, pre-cut to your frequency or with SMA female connectors. The outer jacket diameter ranges from 0.063 through 0.379 inches based on power requirements. Dielectric material is PTFE and jacket is available in bare or RoHS compliant TIN plated seamless copper.

The material is environmentally stable and has been successfully deployed in many legacy land, sea, air and space based military architectures.

For more information on this new line or to discuss how we can satisfy your application specific requirement, please contact Response Microwave, Inc. at (978) 772-3767,, or by e-mail at; [email protected] .
