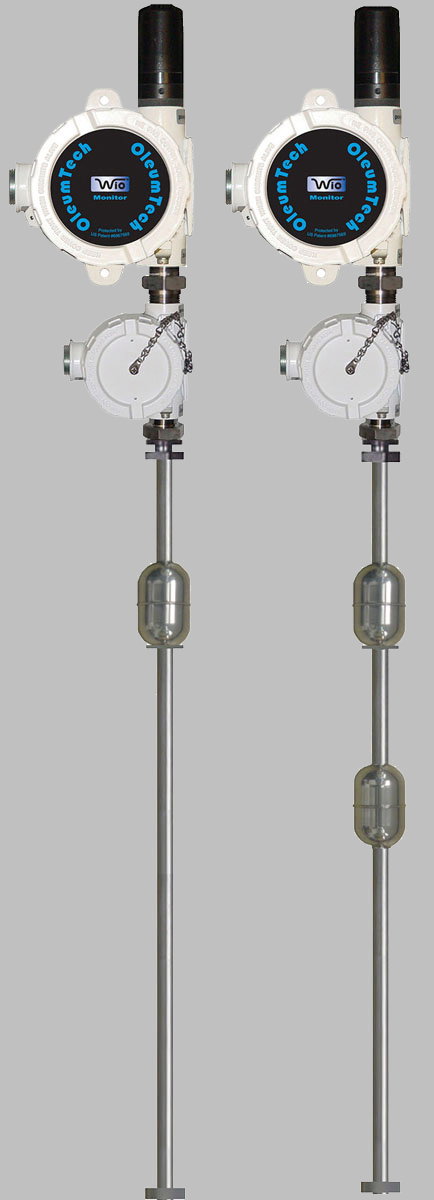

Magnetostrictive Level Transmitter

The Wireless Liquid Level Transmitters are designed to meet EPA Spill Prevention (SPCC) and API Inventory Monitoring requirements.

Wireless (Magnetostrictive) Tank Monitoring Solution Features:

* 3-in-1 Level Measurement Capability (reports Product Level, Interface Level, Temperature)
* Modbus RTU and LevelMaster ASCII Supported
* Field Proven, Reliable Technology
* High Resolution of 0.01" and Linearity of 0.01% Span
* 100 % Self-Contained, Battery Powered
* Error Detection (includes battery health reporting)
* Ultra Low Power Consumption
* Field Replaceable Battery and Level Sensors
* Easy Insertion and Installation (fits any tank)
* No Re-calibration Needed
* Intrinsically Safe, Meets CSA & FM requirements
* 2 Year Warranty

Options:

* 316 Stainless Steel (maximum length up to 24 feet (7.3 meters))
* PVDF Semi-Flexible (maximum length up to 60 feet (18.3 meters))
* Single/Dual Floats (varying specific gravities for different liquid densities)
* License-free RF Radio (both 900 MHz and 2.4 GHz versions available)

Application:

* Oil & Gas Production Tank Monitoring
* Inventory and Custody Transfers
* Petro-chemicals


Protected by US Patent #6967589
