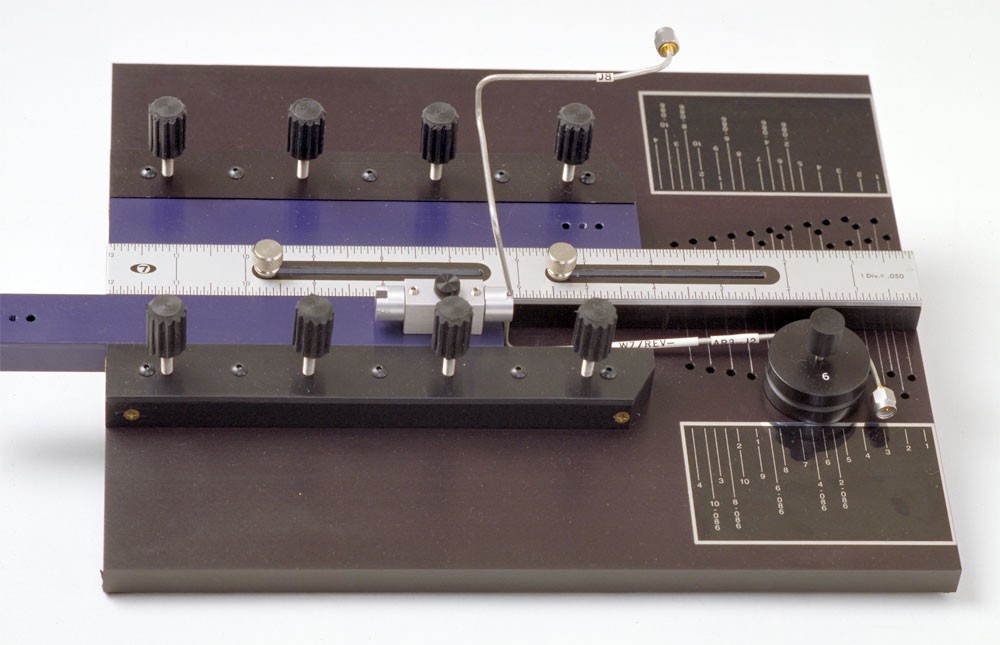

T-570 Semi-Rigid Panagraph Bender

Available from Seven Associates

The Seven Associates T-570 Panagraph forms complex semi-rigid cable assemblies (with or without connectors) into any desired bend radius. The bending time is a fraction of that required using hand benders or one time fixtures.

Slide bars that accomodate cable or cable with connectors are positioned in the panagraph for left or right hand bends. Length is determined by centering the attached scale on the desired bend radius or from an auxiliary caliper measurement for more accuracy. Length can then be recorded for future reference. A plug-in adaptor supports the cable for bends placed 90 degrees (or any number of degrees) from the previous bends.

Typically , once the first article cable is produced, subsequent cable copies are bent one leg at a time through the quantity of cables you wish to bend. For example, if you had 100 cable assemblies to build, you would first bend the first leg on all 100 cables. Then you would proceed to the next leg, change radius wheels if required, and bend all 100 cables with the second leg. You would continue this process through all of the legs and angles until the last leg was bent on all 100 cables.

Recorded bend information can be recalled and reproduced as often as required.

The bend information for your particular cable part number can be kept on a hand written data sheet, or a sample cable can be kept to use as a model to reset your panagraph up with on the next production run.
