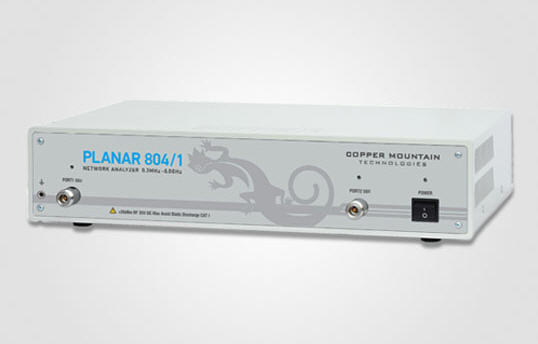

PLANAR 804/1 Vector Network Analyzer

Available from Copper Mountain Technologies

PLANAR 804/1 is an S-parameter vector network analyzer designed for operation with an external PC. The interface is implemented in a virtual format: it connects to any Windows-capable machine via USB and delivers accurate testing and measurement through a platform that can keep up with constant advancements as well as be remotely accessed.

This analyzer is a great value solution for performing the full range of magnitude and phase measurements over the frequency from 300 kHz to 8.0 GHz. PLANAR 804/1 provides a wide variety of analysis capabilities in the frequency and time domains as well as the frequency offset mode feature.

◦ Frequency range: 300 kHz to 8.0 GHz
◦ Measured parameters: S11, S21, S12, S22
◦ Dynamic range of transmission measurement magnitude: 145 dB
◦ Measurement time per point: 100 µs
◦ Output power adjustment range: -60 dBm to +10 dBm

Transformation between the frequency and time domains, mixer/converter measurements, and other state-of-the-art analysis methods.
