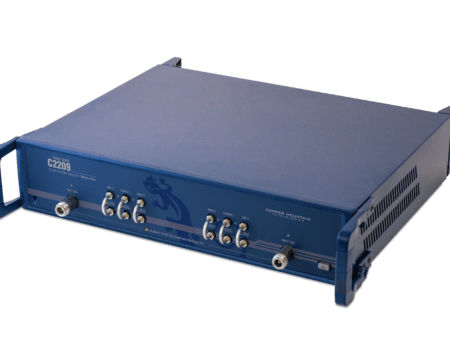

C2209 2-Port 9 GHz Analyzer, Direct Receiver Access
Available from Copper Mountain Technologies
C2209 Vector Network Analyzer delivers industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software.
This “full rack” vector network analyzer with dimensions of 14″ x 17.3″ x 3.8″ (355 x 440 x 96 mm) and a weight of just 15.5 lbs. (7 kg), can be used in the laboratory and in production testing, without requiring a lot of space. The VNA can be integrated into production test system via Manufacturing Test Plug-in. Auxiliary Board Option is available on all Cobalt VNAs at the time of order (factory-installed) or as an add-on at a later date.
C2209 VNA includes an RF measurement module and S2 software application which runs on Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. S2 software can be installed on multiple computers that share the use of the analyzer measurement module.
VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.
