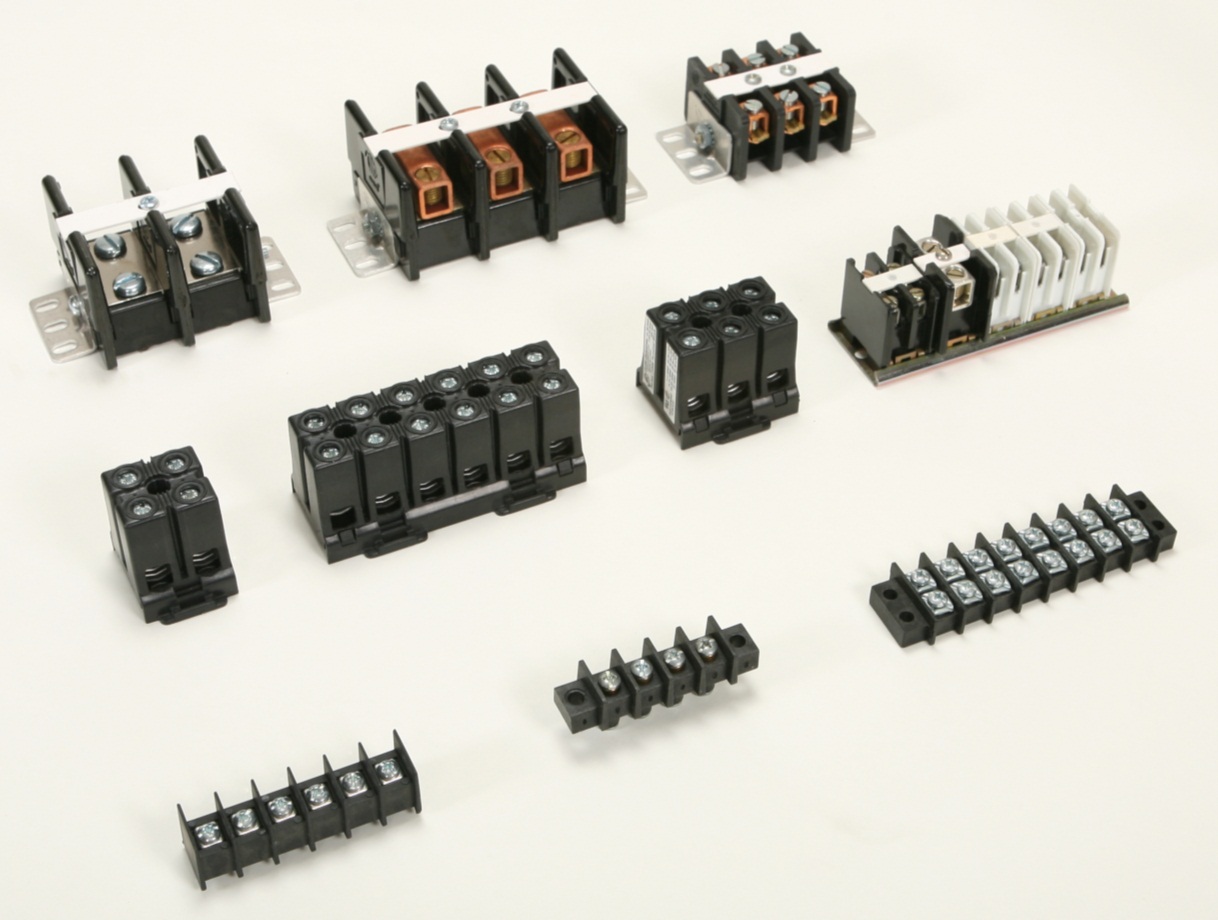

Single Row Terminal Blocks

Product Details

32500 Series .325" (8.25mm) Open or Tri-Barrier
- 300V, 15 Amp rating (20A with 12AWG & Lugs)
- Molded-in standoffs
- Open or Tri-Barrier designs
- Base mount, PC pin, wire wrap, turret, and right angle terminals
- Wire Clamps
- UL/CSA approved

37000/38000 Series 3/8" (9.52mm) Open or Tri-Barrier
- 300V, 20A rating
- Molded-in standoffs
- Surface mount, PC mount, panel mount, feed-through
- Open or tri-barrier style
- Up to 12 AWG wires
- UL/CSA approved

43000 Series 7/16" (11.11mm) Centerline Terminal Blocks
- Rated up to 30 AMPS, 600 Volts (Note: 30 amp requires 10 AWG wire and lugs)
- Durable, self-extinguishing polypropylene
- Plated brass inserts
- Molded-in standoffs aid in board cleaning process
- Base mount and feed thru styles with PC pin, turret, quick connect, wire wrap and right angle
- Available in up to 28 positions
- Variety of top terminations including 6-32 and 8-32 screws, quick connects, wire clamps, jumpers, and covers
- 22 AWG to 12 AWG
- UL/CSA approved

CB/CFT Series 3/8" (9.52mm)Molded-in Inserts
- 20 amps/up to 600 volts
- Feed-though, printed circuit or surface connection
- UL/CSA approved

GFT/GB Series 7/16" (11.11mm) Molded-in Inserts
- 20 amps/up to 600 volts, 22 AWG to 12 AWG
- Feed-though, printed circuit or surface connection
1/4" terminal-to-ground clearance (even through 1/16" chassis)
- Available in 6-32, 8-32 and Metric screw sizes
- UL/CSA approved
