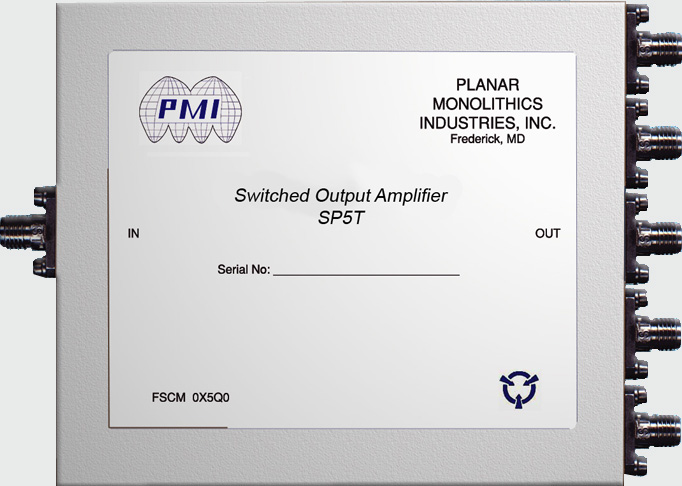

Integrated Switch / Amplifier Modules (500kHz to 40GHz / SPST thru SP16T)

Available from Planar Monolithics Industries, Inc.

PMI offers a full line of switchable output amplifiers that cover the 500kHz to 40GHz frequency range. These amplified switches offer the following features:

Features:

• Frequency Ranges from 500kHz to 40GHz

• Zero Loss or Gain Levels up to 60dB

• Output Power Levels up to +30dBm

• Signal Path direction can be forward, reverse, or bidirectional

• Custom Package Sizes Available

• Internal Voltage Regulation for +12 to +15VDC Operation
• Internal Reverse Voltage Protection
• TTL Controlled Switches (Ethernet and RS-232 available)
• Ultra-Fast Switching Speeds
• High Port-Port Isolation
• Unconditional Stability

Options:

• All switched output amplifiers can be optimized to your specific frequency of interest.
• Temperature Compensation is available on all units.
• Hermetic Sealing is available.
• Full MIL-STD-883 Screening is available. Please specify requirement at time of ordering.
• Gain and Phase matching is available on most units.
