1.0 to 18.0GHz, 10 Watt, High Speed, SPDT Switch
Available from Planar Monolithics Industries, Inc.

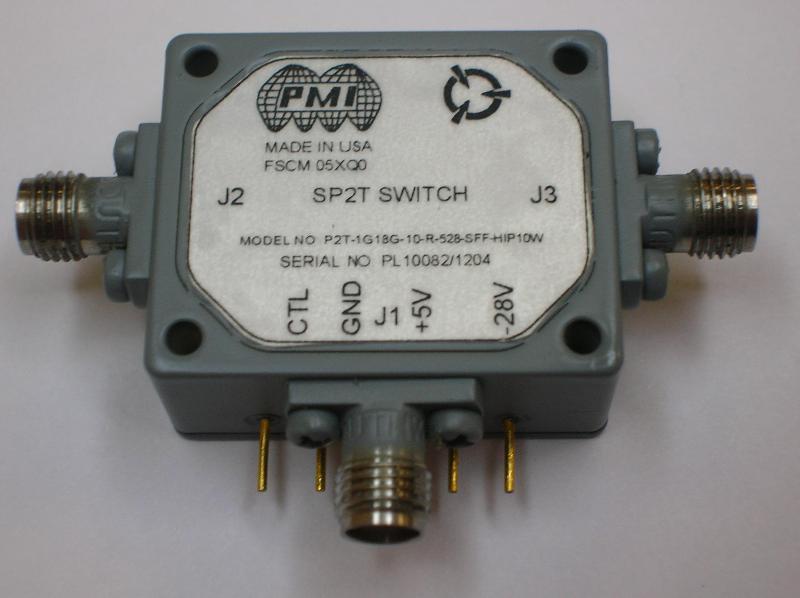

PMI Model No. P2T-1G18G-10-R-528-SFF-HIP10W
PMI Model P2T-1G18G-10-R-528-SFF-HIP10W is a 1.0 to 18.0GHz, Solid-State SPDT switch that can handle
up to 10 watts CW of input power for all operating conditions. This switch provides ultra-fast switching speeds
of 40nsec, 25dB of isolation and 3.0dB of insertion loss typically. The DC current consumption is around 2.5mA
at +5VDC and 2.5mA at -28VDC. The unit is offered in our compact housing that measures only
1.2" x 1.0" x 0.5".
