100MHz to 40GHz, Digital, Solid-State Variable Attenuator

Available from Planar Monolithics Industries, Inc.

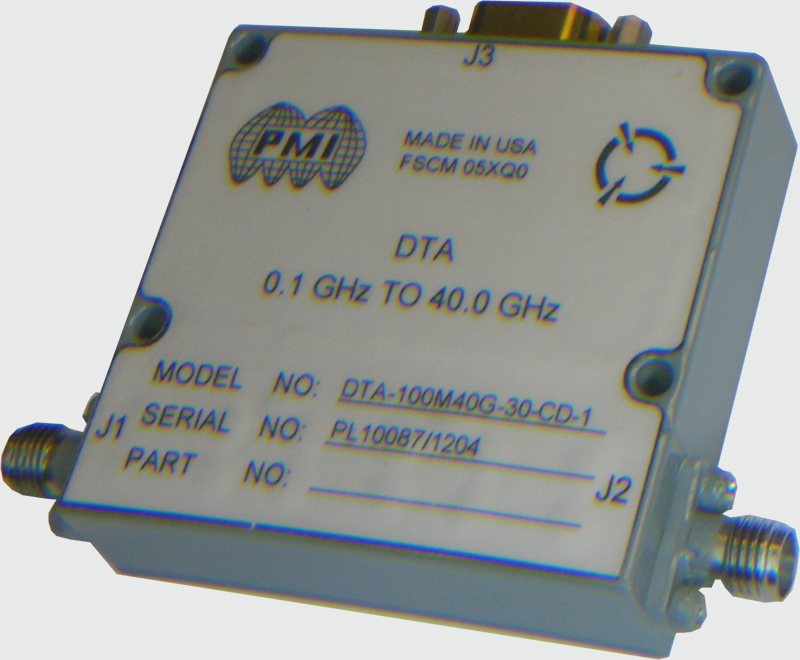

PMI Model No. DTA-100M40G-30-CD-1

PMI Model Number DTA-100M40G-30-CD-1 is a 5-Bit, digitally controlled 30dB PIN diode attenuator
with a step resolution of 1dB covering the frequency range of 100MHz to 40GHz. This model operates
on +5VDC and only draws 40mA. Attenuation accuracy of 0.6dB is achieved due to PMI's proprietary
digital calibration techniques. This model offers excellent attenuation flatness over the full 100MHz to
40GHz frequency range and and operate with input power levels up to +20dBm. This unit is supplied in
a very small housing that measures 2.0 x 1.8 x 0.5 inches.
