400MHz to 6.0GHz, Analog, Solid-State Variable Attenuator

Available from Planar Monolithics Industries, Inc.
Product Menu
View Company Profile View all Products

Product Details

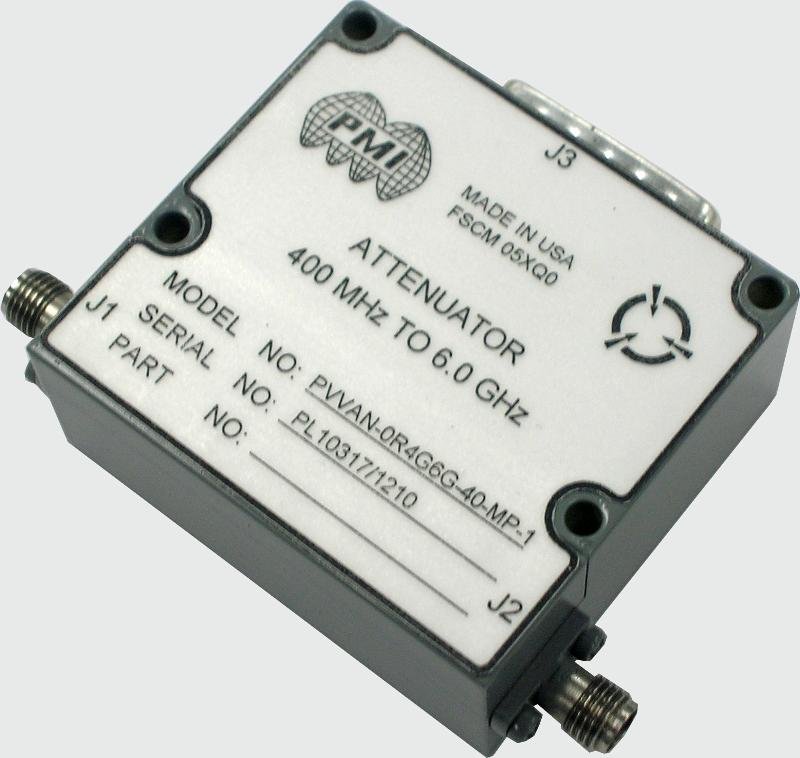

PMI Model No. PVVAN-0R4G6G-40-MP-1

PMI Model Number PVVAN-0R4G6G-40-MP-1 is a non-reflective, linearized, voltage controlled pin diode
attenuator. This model operates over the 400MHz to 6.0GHz frequency range and provides up to 40dB
of attenuation range from 0 to +10VDC control voltage. Typical insertion loss is 2.8dB with a typical
speed of 1usec. Operating power levels are up to +23dBm CW which is the typical input P1dB. This
attenuator is supplied in a small housing measuring only 2.0"L x 1.81"W x 0.88"H.
