PEC-60-10K40M-3R5-14-12-SFF Low Noise Amplifier
Available from Planar Monolithics Industries, Inc.

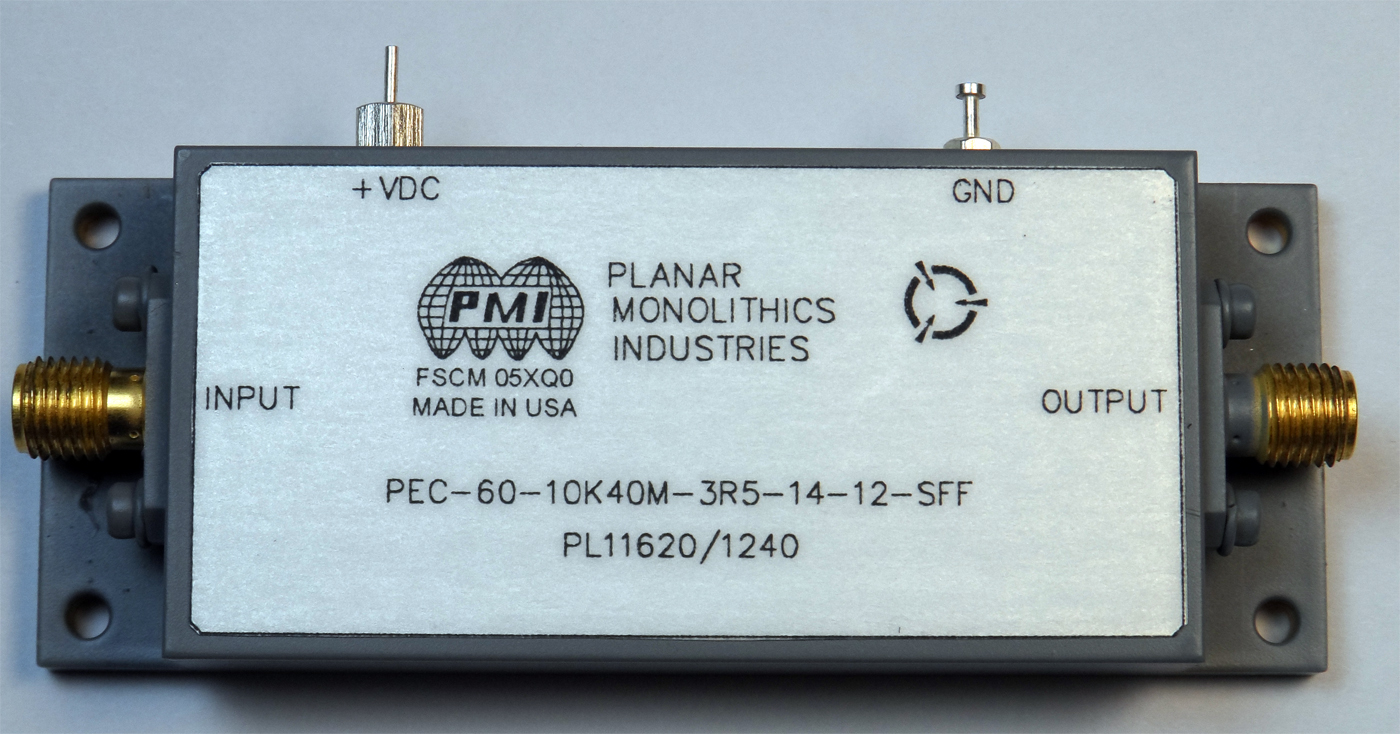

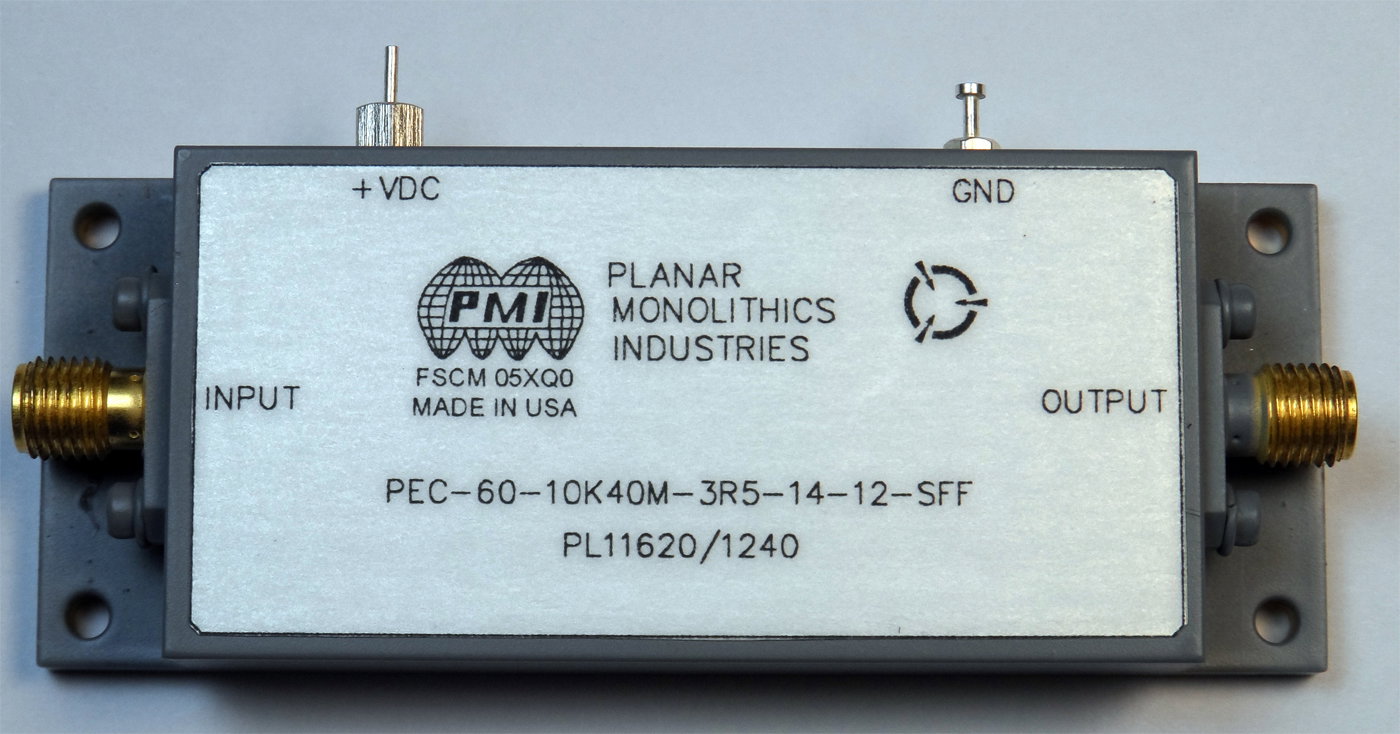

PMI Model No. PEC-60-10K40M-3R5-14-12-SFF is a low noise amplifier that operates from 10kHz to 40MHz. This amplifier provides over 60dB of gain and offers a low noise figure of 3.5dB maximum. The output power at 1dB gain compression is +14dBm minimum. This amplifier operates from a single +12V or +15V DC supply. The housing measures 3.07" x 1.18" x 0.5".
