PIA-10G-CD-1 Integrated Dielectric Resonator (DRO)

PIA-10G-CD-1 Integrated Dielectric Resonator (DRO)

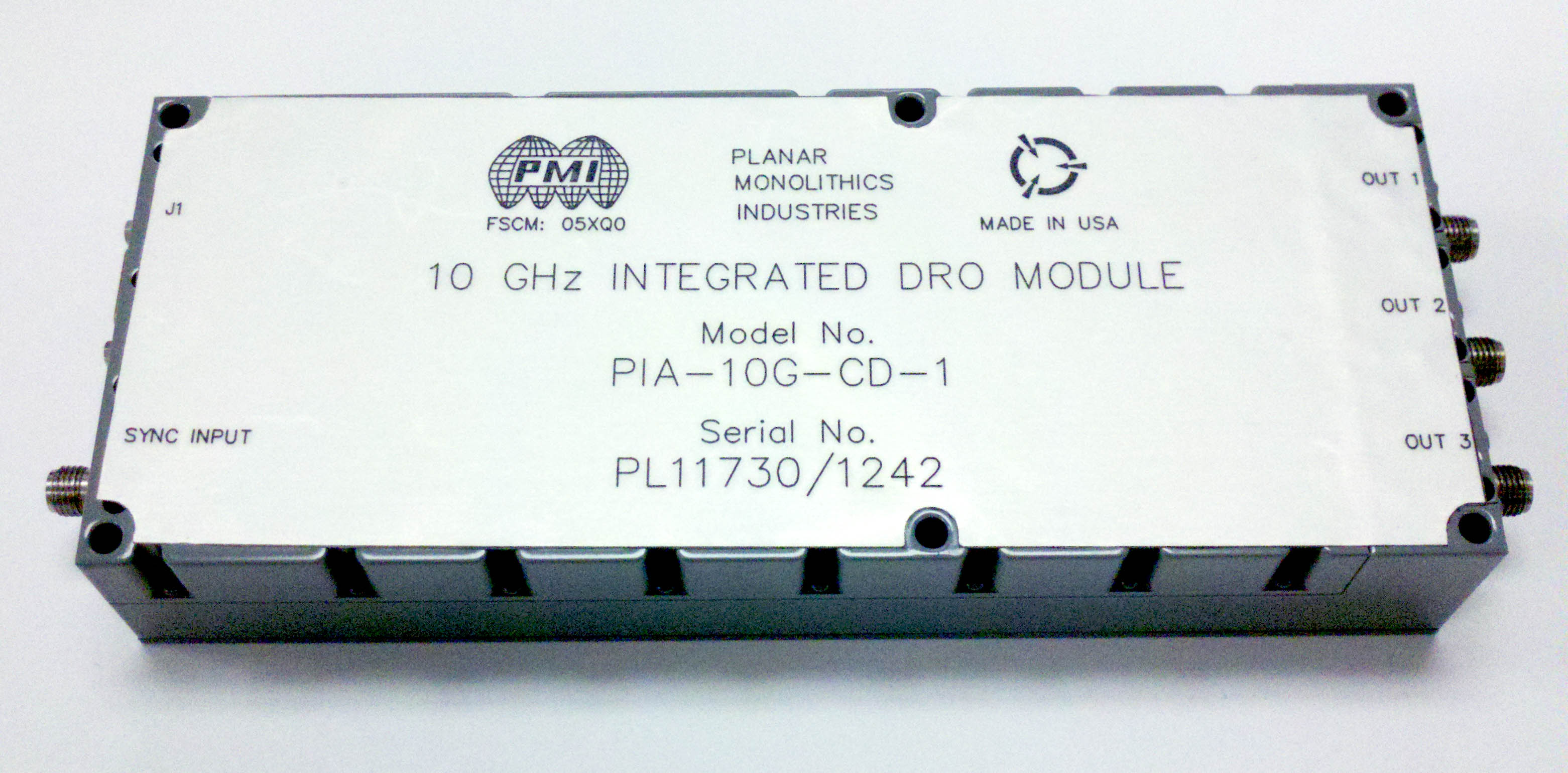

PMI Model No. PIA-10G-CD-1 is a 10GHz Integrated, Dielectric Resonator (DRO) Module with three outputs, each having a 0 to 360 degree analog controlled, variable phase shifter and 0 to 10dB analog controlled, variable output control capability on each of the outputs. This model provides a low harmonic output of -50dBc typical and an output power level of +19dBm typical. This DRO operates on +/-15VDC and is supplied in a compact package measuring 6.25” x 2.5” x 1.0”. Other frequency ranges are available.
