Low-Noise

PE2-25-7G10G-5R0-20-SFF Low-noise Amplifier

Available from Planar Monolithics Industries, Inc.

View All Products

Product Overview

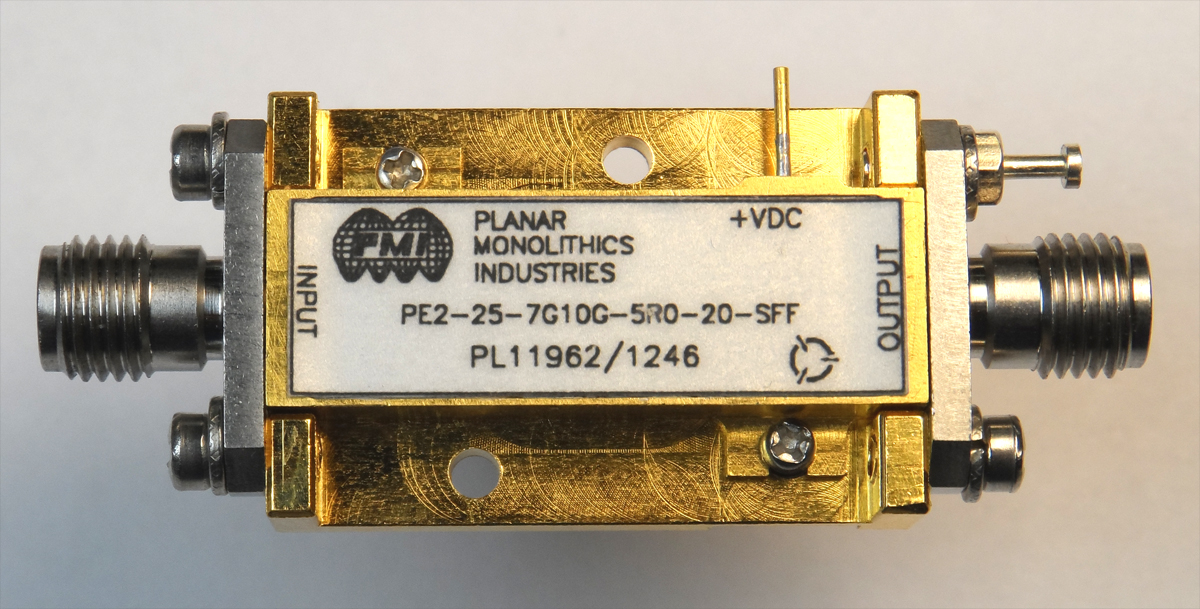

PE2-25-7G10G-5R0-20-SFF Low-noise Amplifier

PMI Model No. PE2-25-7G10G-5R0-20-SFF is a low-noise amplifier that operates over the frequency range of 7.0 to 10.0GHz. This model provides gain of 22dB minimum with a maximum noise figure of 5.0dB. The output power at 1dB gain compression is +20dBm minimum and the output OIP3 is +27dBm minimum. This amplifier is supplied in our standard PE2 housing that can be used with SMA connectors or as surface mount.
