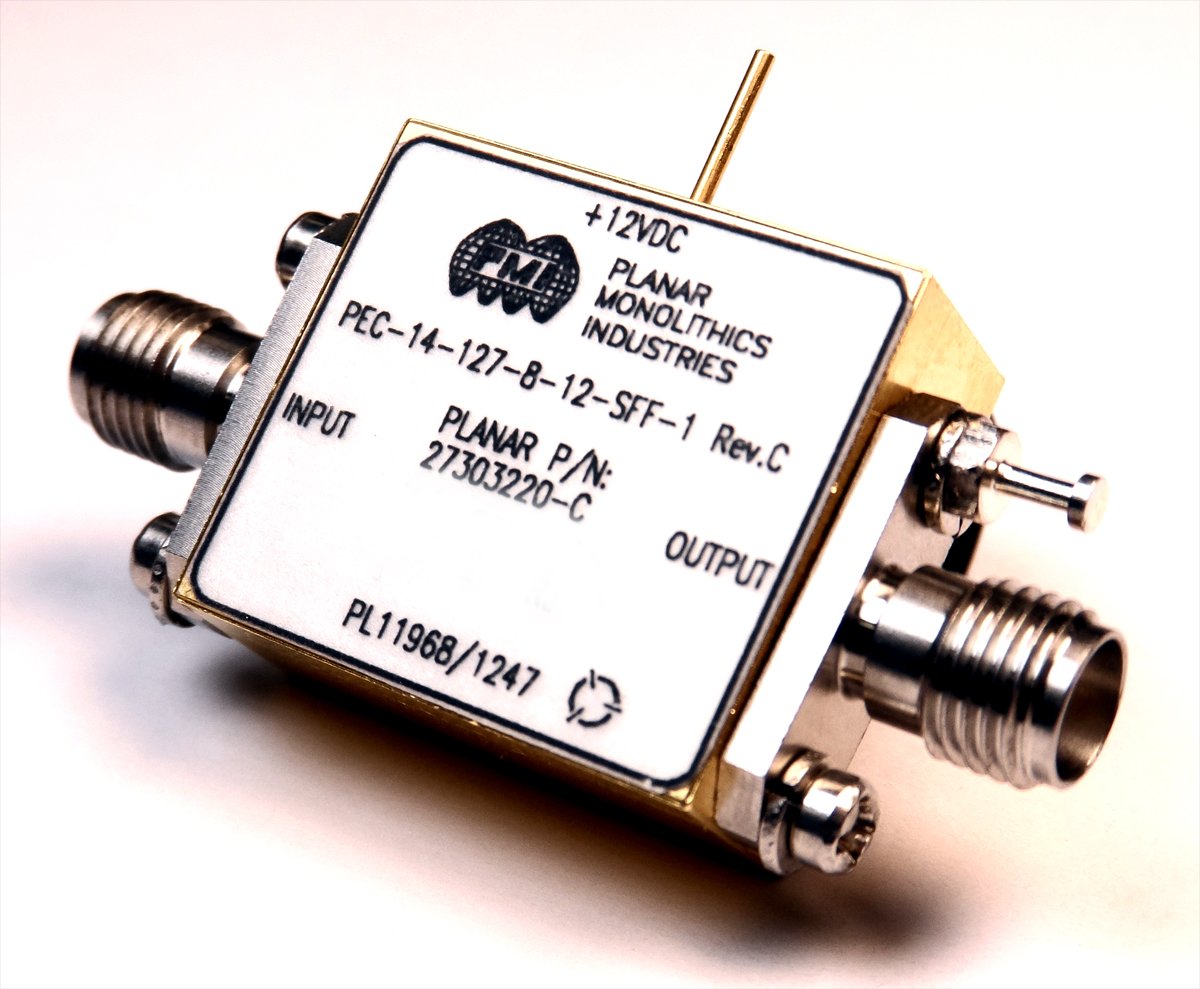

PEC-14-127-8-12-SFF-1 Ultra-broadband Amplifier
Available from Planar Monolithics Industries, Inc.
PMI Model No. PEC-14-127-8-12-SFF-1 is an ultra-broadband amplifier that operates over the frequency range of 1.0 to 26.5GHz. This model provides gain of 13 to 17dB and has a maximum gain flatness of ±1.5dB. The maximum noise figure is 5.5dB from 1.0 to 20.0GHZ and 6.0dB from 20.0 to 26.5GHz. This amplifier can handle input power levels up to +10dBm with no damage and the Input IP3 is +3dBm minimum. The housing measures 0.83" x 0.75" x 0.36" and is supplied with removable SMA connectors. The DC supply required is +12 volts at 225mA.
